MT5201 Datasheet - Matrix Microtech

PWM Step-Down DC/DC Converter

MT5201 Features

* include under-voltage lockout to prevent deep-battery discharge. ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ FEATURES Efficiency up to 96% Only 40uA(TYP.) Quiescent Current Up to 1A Internal Synchronous Rectifier 1.5MHz Switching Frequency Under-Voltage Lockout Short Circuit Protection 5-pin Small SOT-23-5 Package Pb-Fre

MT5201 General Description

The MT5201 is a step-down, current mode, DC-DC converter. At heavy load, the constant-frequency PWM control performs excellent stability and transient response. To ensure the longest battery life in portable applications, the MT5201 have a power-saving Pulse-skipping Modulation (PSM) mode and reduce.

MT5201 Datasheet (466.13 KB)

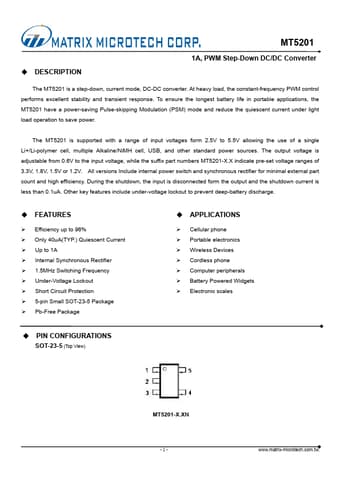

MT5201 Datasheet Preview — Preview of MT5201 PDF

Datasheet Details

Part number:

MT5201

Manufacturer:

Matrix Microtech

File Size:

466.13 KB

Description:

Pwm step-down dc/dc converter.
