WS331 Latch-type Hall-Effect

Description

Matrix Opto Co., Ltd -WS331 Latch-type Hall-Effect IC- WS331 Latch-type Hall-Effect IC * General .
WS331 is an InSb sensor + Si ASIC hybrid Latch-type Hall IC with ultra high sensitivity and low temperature drift in wide operating voltage range.

📥 Download Datasheet

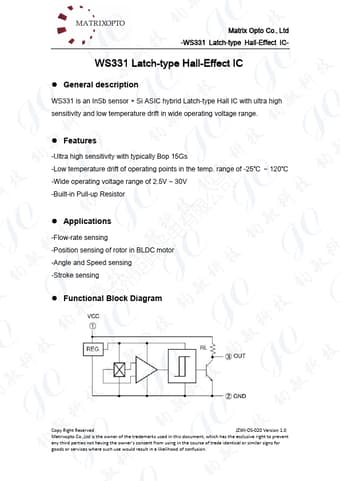

WS331 Datasheet Preview — Preview of WS331 PDF

Datasheet Specifications

Part number: WS331
Manufacturer: Matrixopto
File Size: 0.99 MB
Datasheet: WS331-Matrixopto.pdf
Description: Latch-type Hall-Effect

Features

* -Ultra high sensitivity with typically Bop 15Gs -Low temperature drift of operating points in the temp. range of -25℃ ~ 120℃ -Wide operating voltage range of 2.5V ~ 30V -Built-in Pull-up Resistor

Applications

* -Flow-rate sensing -Position sensing of rotor in BLDC motor -Angle and Speed sensing -Stroke sensing
* Functional Block Diagram Copy Right Reserved JZWI-DS-020 Version 1.0 Matrixopto. Co. ,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any th
