267M1602xxxx, 267M2002225MR, (267M Series) Capacitors

www.DataSheet4U.com SOLID-ELECTROLYTE TANTALUM CAPACITORS (TANCHIP SERIES) ® TYPE Epoxy resin molding chip Standard Series 267M CAUTIONS .

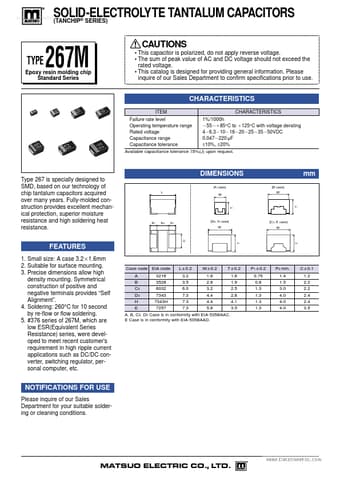

datasheet Preview Page 1 from Datasheet4u.com

267M2002225MR_MatsuoElectronics.pdf

267M1602xxxx Datasheet Preview — This datasheet PDF includes multiple part numbers: 267M1602xxxx, 267M2002225MR. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

267M1602xxxx, 267M2002225MR

Manufacturer:

Matsuo Electronics

File Size:

155.49 KB

Description:

(267M Series) Capacitors

Note:

This datasheet PDF includes multiple part numbers: 267M1602xxxx, 267M2002225MR.
Please refer to the document for exact specifications by model.

Features

* 1. Small size: A case 3.2ϫ1.6mm 2. Suitable for surface mounting. 3. Precise dimensions allow high density mounting. Symmetrical construction of positive and negative terminals provides “Self Alignment”. 4. Soldering: 260°C for 10 second by re-flow or flow soldering. 5. #376 series of 267M, which ar

Applications

* such as DC/DC converter, switching regulator, personal computer, etc. Case code EIA code L ± 0.2 W ± 0.2 T ± 0.2 T P1 ± 0.2 0.75 0.8 1.3 1.3 1.3 1.3 P2 min. 1.4 1.5 3.0 4.0 4.0 4.0 T T C ± 0.1 1.2 2.2 2.2 2.4 2.4 3.5 A 3216 3.2 1.6 1.6 B 3528 3.5 2.8 1.9 C3 6032 6.0 3.2 2.5 D3 7343 7.3 4.4 2
