SP337E - 3.3V TO 5V RS-232/RS-485/RS-422 MULTIPROTOCOL TRANSCEIVER

Description

The SP337E is a dual mode serial transceiver containing both RS-232 and RS-485/422 line drivers and receivers.

The RS-232 mode provides three drivers and five receivers to support all eight signals commonly used in the DB9 serial port connector (3TX/5RX).

Features

  • two independent high speed RS-485/422 transmit and receive channels (2TX/2RX). The default RS-485 configuration is full-duplex, but half-duplex operation can be obtained by tying together the TX and RI pins, and the TXEN and RXEN signals. The SP337E is pin compatible to MaxLinear’s SP334. The SP337EB features a maximum data rate of 250kbps in RS-232 mode and a maximum data rat e of 15Mbps in RS-485. However, the SP337EU features a maximum data rate of 1Mbps in RS-232 mode and a maximum data rate.

📥 Download Datasheet

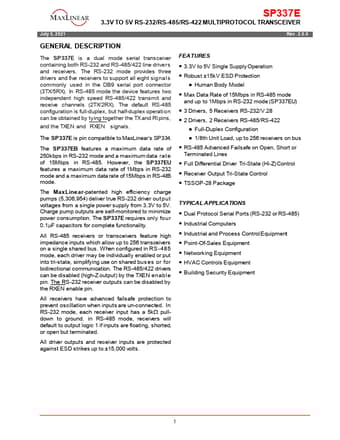

Datasheet preview – SP337E

Datasheet Details

Part number SP337E
Manufacturer MaxLinear
File Size 598.32 KB
Description 3.3V TO 5V RS-232/RS-485/RS-422 MULTIPROTOCOL TRANSCEIVER
Datasheet download datasheet SP337E Datasheet
Additional preview pages of the SP337E datasheet.

📁 Similar Datasheet

  • SP337E - 3.3V TO 5V RS-232/RS-485/RS-422 MULTIPROTOCOL TRANSCEIVER (Exar)
  • SP3374NUTG - 3.3V 40A Diode Array (Littelfuse)
  • SP3374NUTG - 4-Line TVS (Leiditech)
  • SP3304NUTG - 4-Line 3.3V ESD Protection Diode Array (Leiditech)
  • SP330E - RS-232/RS-485/RS-422 TRANSCEIVER (EXAR)
  • SP331 - Programmable Dual RS-232/RS-485 Transceiver (EXAR)
  • SP331 - Programmable RS-232/RS-485 Transceiver (Sipex)
  • SP3312T - 3.3V 15A Diode Array (Littelfuse)
  • SP3313 - 100% Duty Cycle CC&CV Buck Convertor (Segma Power)
  • SP332 - RS-232/RS-485 Multi-mode SerialTransceiver (EXAR)
Other Datasheets by MaxLinear
  • SP330E - RS-232/RS-485/RS-422 TRANSCEIVER
  • SP331 - Programmable Dual RS-232/RS-485 Transceiver
  • SP332 - RS-232/RS-485 Transceiver
  • SP334 - Programmable RS-232/RS-485 Transceiver
  • SP335E - RS-232/RS-485/RS-422 TRANSCEIVER
  • SP336E - 3.3V / 5V PROGRAMMABLE RS-232/RS-485/RS-422 SERIAL TRANSCEIVER
  • SP338E - RS-232/RS-485/RS-422 TRANSCEIVER
  • SP339B - RS-232/RS-485/RS-422 TRANSCEIVER

Full PDF Text Transcription

Click to expand full text
SP337E 3.3V TO 5V RS-232/RS-485/RS-422 MULTIPROTOCOL TRANSCEIVER July 5, 2021 Rev . 2.0.0 GENERAL DESCRIPTION The SP337E is a dual mode serial transceiver containing both RS-232 and RS-485/422 line drivers and receivers. The RS-232 mode provides three drivers and five receivers to support all eight signals commonly used in the DB9 serial port connector (3TX/5RX). In RS-485 mode the device features two independent high speed RS-485/422 transmit and receive channels (2TX/2RX). The default RS-485 configuration is full-duplex, but half-duplex operation can be obtained by tying together the TX and RI pins, and the TXEN and RXEN signals. The SP337E is pin compatible to MaxLinear’s SP334.
