XR22801 Datasheet Hi-speed Usb To 10/100 Ethernet Bridge

Manufacturer: MaxLinear

Overview: XR22801 Hi-Speed USB to 10/100 Ethernet Bridge with 1 UART General.

Datasheet Details

Part number XR22801
Manufacturer MaxLinear
File Size 775.33 KB
Description Hi-Speed USB to 10/100 Ethernet Bridge

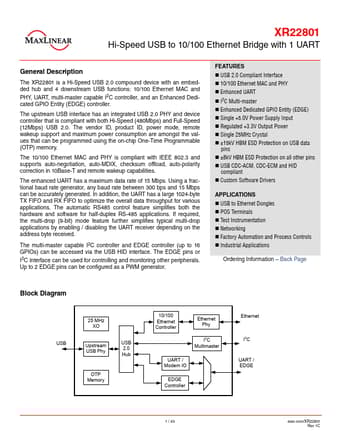

Datasheet XR22801-MaxLinear.pdf

General Description

The XR22801 is a Hi-Speed USB 2.0 compound device with an embedded hub and 4 downstream USB functions: 10/100 Ethernet MAC and PHY, UART, multi-master capable I2C controller, and an Enhanced Dedicated GPIO Entity (EDGE) controller.

The upstream USB interface has an integrated USB 2.0 PHY and device controller that is compliant with both Hi-Speed (480Mbps) and Full-Speed (12Mbps) USB 2.0.

The vendor ID, product ID, power mode, remote wakeup support and maximum power consumption are amongst the values that can be programmed using the on-chip One-Time Programmable (OTP) memory.

Key Features

  • USB 2.0 Compliant Interface.
  • 10/100 Ethernet MAC and PHY.
  • Enhanced UART.
  • I2C Multi-master.
  • Enhanced Dedicated GPIO Entity (EDGE).
  • Single +5.0V Power Supply Input.
  • Regulated +3.3V Output Power.
  • Single 25MHz Crystal.
  • ±15kV HBM ESD Protection on USB data pins.
  • ±8kV HBM ESD Protection on all other pins.
  • USB CDC-ACM, CDC-ECM and HID compliant.
  • Custom Software Drivers.
