1909ETI - MAX1909ETI

Description

The MAX1909/MAX8725 highly integrated control ICs simplify construction of accurate and efficient multichemistry battery chargers.

The MAX1909/MAX8725 use analog inputs to control charge current and voltage, and can be programmed by a host microcontroller (µC) or hardwired.

Features

  • .5% Accurate Charge Voltage (0°C to +85°C) ±3% Accurate Input Current Limiting ±5% Accurate Charge Current Programmable Charge Current >4A Automatic System Power-Source Selection Analog Inputs Control Charge Current and Charge Voltage Monitor Outputs for Current Drawn from AC Input Source AC Adapter Presence Up to 17.65V (max) Battery Voltage Maximum 28V Input Voltage Greater than 95% Efficiency Charge Any Battery Chemistry: Li+, NiCd, NiMH, Lead Acid, etc. MAX1909/MAX8725 Ordering Information.

📥 Download Datasheet

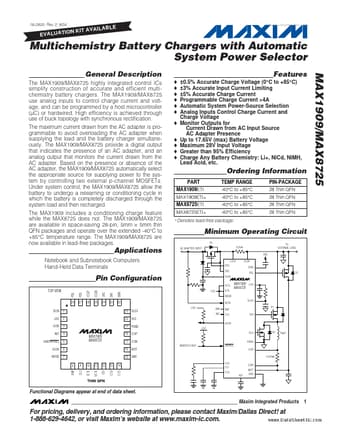

Datasheet preview – 1909ETI

📁 Similar Datasheet

  • 1900x001 - (1900x001 - 1900x003) LED (CML Innovative Technologies)
  • 1900x002 - (1900x001 - 1900x003) LED (CML Innovative Technologies)
  • 1900x003 - (1900x001 - 1900x003) LED (CML Innovative Technologies)
  • 1906EC - Polystyrene and Foil Capacitors (Electronic Film Capacitors)
  • 1906TC - Polystyrene and Foil Capacitors (Electronic Film Capacitors)
  • 190P7 - LCD Color Monitor (Philips)
  • 190TW8FB - TFT LCD COLOR TELEVISION (Philips)
  • 190VW8FB - LCD Monitor (Philips)
Other Datasheets by Maxim Integrated Products

    Full PDF Text Transcription

    Click to expand full text
    19-2805; Rev 2; 9/04 ILABLE N KIT AVA EVALUATIO www.DataSheet4U.com Multichemistry Battery Chargers with Automatic System Power Selector General Description The MAX1909/MAX8725 highly integrated control ICs simplify construction of accurate and efficient multichemistry battery chargers. The MAX1909/MAX8725 use analog inputs to control charge current and voltage, and can be programmed by a host microcontroller (µC) or hardwired. High efficiency is achieved through use of buck topology with synchronous rectification. The maximum current drawn from the AC adapter is programmable to avoid overloading the AC adapter when supplying the load and the battery charger simultaneously.
