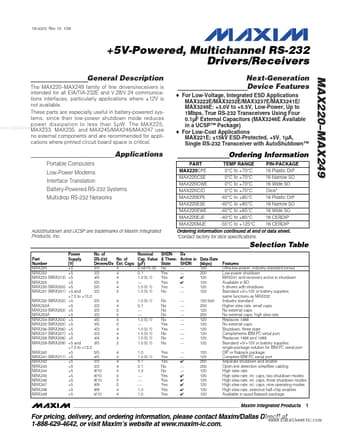

Description The MAX220- MAX249 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 munications interfaces, particularly applications where ±12V is not available. These parts are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5µW. The MAX225, .. MAX233, MAX235, and MAX245/MAX246/MAX247 use no external ponents and are remended for applications where printed circuit board space is critical. Next-Generation Device Features - For Low-Voltage, Integrated ESD Applications MAX3222E/MAX3232E/MAX3237E/MAX3241E/ MAX3246E: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1µF External Capacitors (MAX3246E Available in a UCSP™ Package) - For Low-Cost Applications MAX221E: ±15k V ESD-Protected, +5V, 1µA, Single RS-232 Transceiver with Auto Shutdown™ MAX220- MAX249 ________________________Applications Portable puters Low-Power Modems Interface Translation Battery-Powered RS-232 Systems Multidrop RS-232 Networks PART MAX220CPE MAX220CSE MAX220CWE MAX220C/D MAX220EPE MAX220ESE MAX220EWE MAX220EJE MAX220MJE Ordering Information TEMP RANGE 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -55°C to +125°C PIN-PACKAGE 16 Plastic DIP 16 Narrow SO 16 Wide SO Dice- 16 Plastic DIP 16 Narrow SO 16 Wide SO 16 CERDIP 16 CERDIP Auto Shutdown and UCSP are trademarks of Maxim Integrated Products, Inc. Ordering Information continued at end of data sheet. - Contact factory for dice specifications. Selection Table Part Number MAX220 MAX222 MAX223 (MAX213) MAX225 MAX230 (MAX200) MAX231 (MAX201) MAX232 (MAX202) MAX232A MAX233 (MAX203) MAX233A MAX234 (MAX204) MAX235 (MAX205) MAX236 (MAX206) MAX237 (MAX207) MAX238 (MAX208) MAX239 (MAX209) MAX240 MAX241 (MAX211) MAX242 MAX243 MAX244 MAX245 MAX246 MAX247 MAX248 MAX249 Power Supply (V) +5 +5 +5 +5 +5 +5 and +7.5 to +13.2 +5 +5 +5 +5 +5 +5 +5 +5 +5 +5 and +7.5 to...
