DS1080CL Datasheet, Multiplier, Maxim Integrated Products

DS1080CL Features

  • Multiplier
  • Generates Spread-Spectrum Clocks from 8MHz to 64MHz
  • Selectable Clock Multiplier Rates of 1x, 2x, and 4x
  • Center Spread-Spectrum Dithering
  • Selectab

PDF File Details

Part number:

DS1080CL

Manufacturer:

Maxim Integrated ↗ Products

File Size:

230.06kb

Download:

📄 Datasheet

Description:

Spread-spectrum crystal multiplier. The DS1080CL is a low-jitter, crystal-based clock generator with an integrated phase-locked loop (PLL) to generate spread-spectrum cl

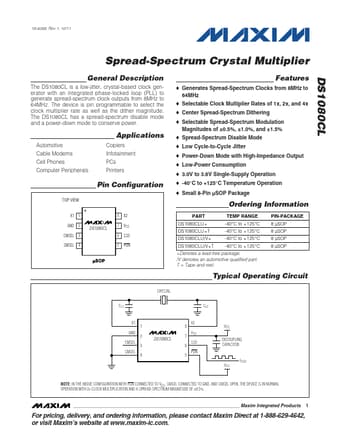

Datasheet Preview: DS1080CL 📥 Download PDF (230.06kb)
Page 2 of DS1080CL Page 3 of DS1080CL

DS1080CL Application

  • Applications Automotive Cable Modems Cell Phones Computer Peripherals Copiers Infotainment PCs Printers Pin Configuration TOP VIEW + X1 GND CMSEL S
