DS1877 SFP Controller For Dual Rx Interface

DS1877 Description

www.DataSheet4U.com 19-5188; Rev 1; 4/10 SFP Controller for Dual Rx Interface General .
The DS1877 controls and monitors all functions for SFF, SFP, and SFP+ modules including all SFF-8472 functionality.

DS1877 Features

* S Meets All SFF-8472 Control and Monitoring Requirements S Four Analog Monitor Channels: Temperature, VCC, RSSI1, RSSI2 RSSI1 and RSSI2 Support Internal and External Calibration Differential Input Common-Mode Range from GND to VCC Scalable Dynamic Range Internal Direct-to-Digital Tempe

DS1877 Applications

* SFF, SFP, and SFP+ Transceiver Modules Dual Rx Video SFPs Ordering Information PART DS1877T+ DS1877T+T&R TEMP RANGE -40NC to +95NC -40NC to +95NC PIN-PACKAGE 28 TQFN-EP
* 28 TQFN-EP
* +Denotes a lead(Pb)-free/RoHS-compliant package. T&R = Tape and reel.
* EP = Exposed pad. ______________

📥 Download Datasheet

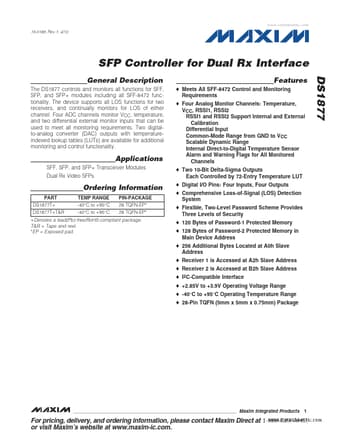

Preview of DS1877 PDF
