DS2045W, DS204W Datasheet - Maxim Integrated Products

DS2045W - Single-Piece 1M Nonvolatile SRAM

DS2045W Applications RAID Systems and Servers Industrial Controllers Gaming Router/Switches POS Terminals Data-Acquisition Systems Fire Alarms PLC Pin Configuration appears at end of data sheet.

PART DS2045W-100 TEMP RANGE -40°C to +85°C PIN-PACKAGE 256 Ball 27mm2 BGA Module w 8051 MICROPRO

Rev 1; 1/05 w The DS2045W is a 1Mb reflowable nonvolatile (NV) SRAM, which consists of a static RAM (SRAM), an NV controller, and an internal rechargeable manganese lithium (ML) battery.

These components are encased in a surface-mount module with a 256-ball BGA footprint.

Whenever VCC is applied to the module, it recharges the ML battery, powers the SRAM from the external power source, and allows the contents of the SRAM to be modified.

When VCC is powered down or out of tolerance, the control

DS2045W Features

* Single-Piece, Reflowable, PBGA Package Footprint

* Internal ML Battery and Charger

* Unconditionally Write-Protects SRAM when VCC is Out-of-Tolerance

* Automatically Switches to Battery Supply when VCC Power Failures Occur

* Internal Power-Supply Monitor Det

DS204W_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: DS2045W, DS204W. Please refer to the document for exact specifications by model.

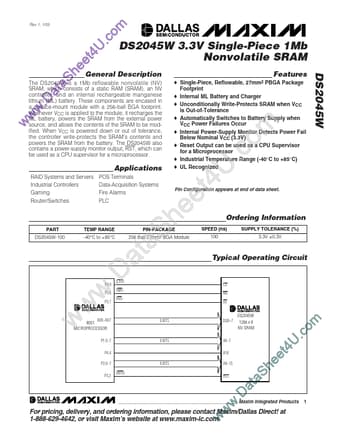

DS2045W Datasheet Preview Page 2 DS2045W Datasheet Preview Page 3
