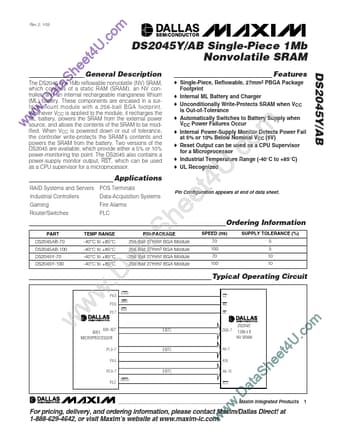

DS2045Y Single-Piece 1M Nonvolatile SRAM

DS2045Y/AB Applications RAID Systems and Servers Industrial Controllers Gaming Router/Switches POS Terminals Data-Acquisition Systems Fire Alarms PLC Pin Configuration appears at end of data sheet. PART DS2045AB-70 DS2045AB-100 DS2045Y-70 DS2045Y-100 TEMP RANGE -40°C to +85°C -40°C to +85°C -40.

Rev 2; 1/05 w The DS2045 is a 1Mb reflowable nonvolatile (NV) SRAM, which consists of a static RAM (SRAM), an NV controller, and an internal rechargeable manganese lithium (ML) battery. These components are encased in a surface-mount module with a 256-ball BGA footprint. Whenever VCC is applied to the module, it recharges the ML battery, powers the SRAM from the external power source, and allows the contents of the SRAM to be modified. When VCC is powered down or out of tolerance, the controll.

DS2045Y Features

* Single-Piece, Reflowable, PBGA Package Footprint

* Internal ML Battery and Charger

* Unconditionally Write-Protects SRAM when VCC is Out-of-Tolerance

* Automatically Switches to Battery Supply when VCC Power Failures Occur

* Internal Power-Supply Monitor Det
