DS80C400 - Network Microcontroller

Product Overview

Maxim Integrated Products

Part number	DS80C400
Manufacturer	Maxim Integrated Products
File Size	2.25 MB
Description	Network Microcontroller
Datasheet	DS80C400 Datasheet

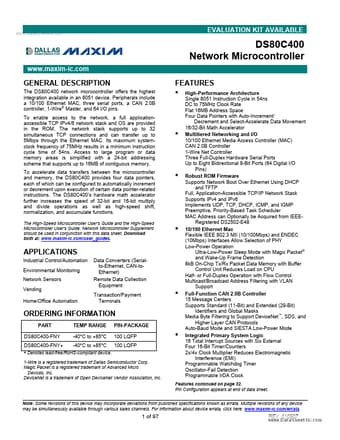

Additional preview pages of the DS80C400 datasheet.

The DS80C400 network microcontroller offers the highest integration available in an 8051 device.

High-Performance Architecture Single 8051 Instruction Cycle in 54ns DC to 75MHz Clock Rate Flat 16MB Address Space Four Data Pointers with Auto-Increment/ Decrement and Select-Accelerate Data Movement 16/32-Bit Math Accelerator Multitiered Networking and I/O 10/100 Ethernet Media Access Controller (MAC) CAN 2.0B Controller 1-Wire Net Controller Three Full-Duplex Hardware Serial Ports Up to Eight Bidirectional 8-Bit Ports (64 Digital I/O Pins) Robust ROM Firmware Supports Network Boot Over Ethern.
