ICL7612 Single/Dual/Triple/Quad Operational Amplifiers

The ICL761X *ICL764X family of monolithic CMOS op amps combine ultra-low input current with low-power operation over a wide supply voltage range. With pinselectable quiescent currents of 10µA, 100µA, or 1000µA per amplifier, these op amps will operate from ±1V to ±8V power supplies, or from s.

ICL7612 Features

* o Pin-for-Pin Second Source o 1pA Typical Bias Current

* 4nA (max) at +125°C o ±1V to ±8V Wide Supply Voltage Range o Industry-Standard Pinouts o Programmable Quiescent Currents of 10µA, 100µA, and 1000µA o Monolithic, Low-Power CMOS Design ICL76XX Ordering Information MN VOS SELECTION TE

ICL761x_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: ICL7612, ICL761x. Please refer to the document for exact specifications by model.

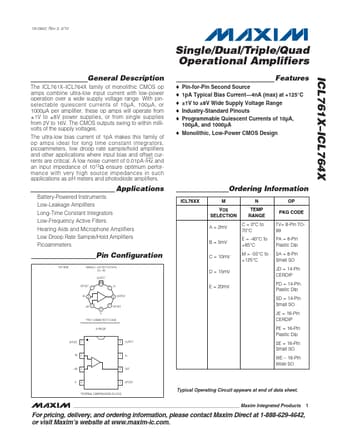

ICL7612 Datasheet Preview Page 2 ICL7612 Datasheet Preview Page 3

Datasheet Details

Part number:

ICL7612, ICL761x

Manufacturer:

Maxim Integrated ↗ Products

File Size:

528.30 KB

Description:

Single/dual/triple/quad operational amplifiers.

Note:

This datasheet PDF includes multiple part numbers: ICL7612, ICL761x.
Please refer to the document for exact specifications by model.
