ICL7665 Datasheet - Maxim Integrated Products

Microprocessor Voltage Monitor

ICL7665 Features

* µP Over/Undervoltage Warning Improved Second Source Dual Comparator with Precision Internal Reference 3µA Operating Current 2% Threshold Accuracy (ICL7665A) 1.6V to 16V Supply Voltage Range On-Board Hysteresis Outputs Externally Programmable Trip Points Monolithic, Low-Power CMOS Design ___________

ICL7665 General Description

The ICL7665 warns microprocessors (µPs) of overvoltage and undervoltage conditions. It draws a typical operating current of only 3µA. The trip points and hysteresis of the two voltage detectors are individually programmed via external resistors to any voltage greater than 1.3V. The ICL7665 will oper.

ICL7665 Datasheet (926.89 KB)

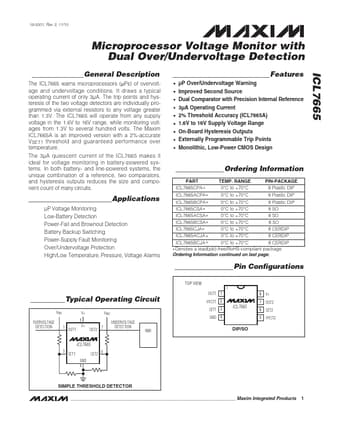

Preview of ICL7665 PDF

Datasheet Details

Part number:

ICL7665

Manufacturer:

Maxim Integrated ↗ Products

File Size:

926.89 KB

Description:

Microprocessor voltage monitor.
