MAX13171E - (MAX13171E - MAX13175E) Pin-Selectable Data Interface Chipset

Description

The MAX13171E along with the MAX13173E/ MAX13175E, form a complete pin-selectable data terminal equipment (DTE) or data communication equipment (DCE) interface port that support the V.28 (RS-232), V.10/V.11 (RS-449/V.36, RS-530, RS-530A, X.21), and V.35 protocols.

Features

  • Supports V.28 (RS-232), V.10 (RS-423), V.11 (RS-449/V.36, RS-530, RS-530A, X.21) and V.35 Protocols.
  • Pin-Selectable Cable Termination Using the MAX13175E.
  • Pin-Selectable DCE/DTE Configurations.
  • 20/40Mbps (max) Data Rate in RS-449, RS-530, RS-530A, X.21, and V.35.
  • True Fail-Safe Receivers while Maintaining V.11 and V.35 Compatibility.
  • Operates Over a Wide +3.135V to +5.5V VCC Supply Range.
  • Flexible VL Logic Reference Input Allows Int.

📥 Download Datasheet

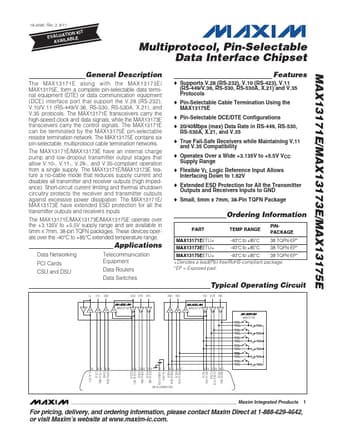

Datasheet preview – MAX13171E

📁 Similar Datasheet

  • MAX131 - 3 1/2 Digit A/D Converters (Maxim)
  • MAX1310 - 8-/4-/2-Channel / 12-Bit / Simultaneous-Sampling ADCs (Maxim)
  • MAX1312 - 8-/4-/2-Channel / 12-Bit / Simultaneous-Sampling ADCs (Maxim)
  • MAX1313 - 8-/4-/2-Channel / 12-Bit / Simultaneous-Sampling ADCs (Maxim)
  • MAX1314 - 8-/4-/2-Channel / 12-Bit / Simultaneous-Sampling ADCs (Maxim)
  • MAX130 - 3 Digit A/D Converters with Bandgap Refrence (Maxim)
  • MAX13000E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13001E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13002E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13003E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX1317 - Simultaneous-Sampling ADCs
  • MAX13173E - (MAX13171E - MAX13175E) Pin-Selectable Data Interface Chipset
  • MAX13174E - Pin-Selectable Cable Terminator
  • MAX13175E - (MAX13171E - MAX13175E) Pin-Selectable Data Interface Chipset
  • MAX1316 - Simultaneous-Sampling ADCs
  • MAX1318 - Simultaneous-Sampling ADCs
  • MAX13181E - RS-485 Transceiver
  • MAX13182E - RS-485 Transceiver

Full PDF Text Transcription

Click to expand full text
19-4595; Rev 1; 7/09 Multiprotocol, Pin-Selectable Data Interface Chipset General Description The MAX13171E along with the MAX13173E/ MAX13175E, form a complete pin-selectable data terminal equipment (DTE) or data communication equipment (DCE) interface port that support the V.28 (RS-232), V.10/V.11 (RS-449/V.36, RS-530, RS-530A, X.21), and V.35 protocols. The MAX13171E transceivers carry the high-speed clock and data signals, while the MAX13173E transceivers carry the control signals. The MAX13171E can be terminated by the MAX13175E pin-selectable resistor termination network. The MAX13175E contains six pin-selectable, multiprotocol cable termination networks. The MAX13171E/MAX13173E have an internal charge pump and low-dropout transmitter output stages that allow V.10-, V.11-, V.
