MAX13433E - RS-485 Transceivers

This page provides the datasheet information for the MAX13433E, a member of the MAX13430E RS-485 Transceivers family.

Description

The MAX13430E

MAX13433E are full- and half-duplex RS-485 transceivers that feature an adjustable low-voltage logic interface for operation in multivoltage systems.

This allows direct interfacing to low-voltage ASIC/FPGAs without extra components.

MAX13433E RS-485 trans

Features

  • Wide +3V to +5V Input Supply Range.
  • Low-Voltage Logic Interface +1.62V (min).
  • Ultra-Low Supply Current in Shutdown Mode 10µA ICC (max), 1µA IL (max).
  • Thermal Shutdown Protection.
  • Hot-Swap Input Structures on DE and RE.
  • 1/8-Unit Load Allows Up to 256 Transceivers on the Bus.
  • Enhanced Slew-Rate Limiting (MAX13430E/MAX13432E).
  • Extended ESD Protection for RS-485 I/O Pins ±30kV Human Body Model ±15kV Air-Gap Discharge per IEC 61.

📥 Download Datasheet

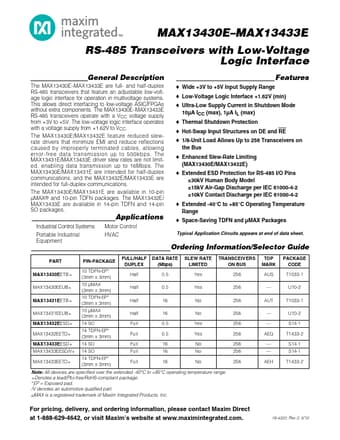

Datasheet preview – MAX13433E
