MAX13448E - 80V Fault-Protected Full-Duplex RS-485 Transceiver

Description

The MAX13448E full-duplex RS-485 transceiver

Features

  • inputs and outputs fault protected up to ±80V (with respect to ground). The device operates from a +3.0V to +5.5V supply and features true fail-safe circuitry, guaranteeing a logic-high receiver output when the receiver inputs are open or shorted. This enables all receiver outputs on a terminated bus to output logichigh when all transmitters are disabled. The MAX13448E features a slew-rate limited driver that minimizes EMI and reduces reflections caused by improperly terminated cables, allowing.

📥 Download Datasheet

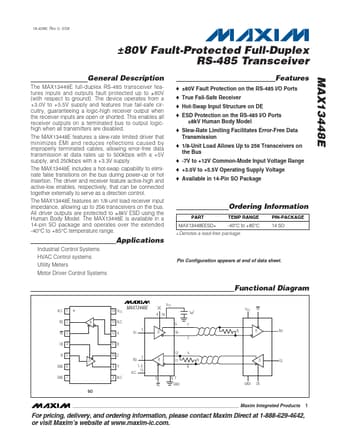

Datasheet preview – MAX13448E

📁 Similar Datasheet

  • MAX134 - 3 Digit DMM Circuit (Maxim)
  • MAX1343 - Multichannel ADCs/DACs (Maxim Integrated)
  • MAX13487E - Half-Duplex RS-485-Compatible Transceiver (Analog Devices)
  • MAX13488E - Half-Duplex RS-485-Compatible Transceiver (Analog Devices)
  • MAX130 - 3 Digit A/D Converters with Bandgap Refrence (Maxim)
  • MAX13000E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13001E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13002E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13003E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13004E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
Other Datasheets by Maxim Integrated Products

Full PDF Text Transcription

Click to expand full text
www.DataSheet.co.kr 19-4098; Rev 0; 5/08 ±80V Fault-Protected Full-Duplex RS-485 Transceiver General Description The MAX13448E full-duplex RS-485 transceiver features inputs and outputs fault protected up to ±80V (with respect to ground). The device operates from a +3.0V to +5.5V supply and features true fail-safe circuitry, guaranteeing a logic-high receiver output when the receiver inputs are open or shorted. This enables all receiver outputs on a terminated bus to output logichigh when all transmitters are disabled. The MAX13448E features a slew-rate limited driver that minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error-free data transmission at data rates up to 500kbps with a +5V supply, and 250kbps with a +3.3V supply.
