MAX1473, ASK Superheterodyne Receiver

www.DataSheet4U.com 19-2748; Rev 3; 11/03 315MHz/433MHz ASK Superheterodyne Receiver with Extended Dynamic Range General .
The MAX1473 fully integrated low-power CMOS superheterodyne receiver is ideal for receiving amplitudeshift-keyed (ASK) data in the 300MHz to 450MHz fr.

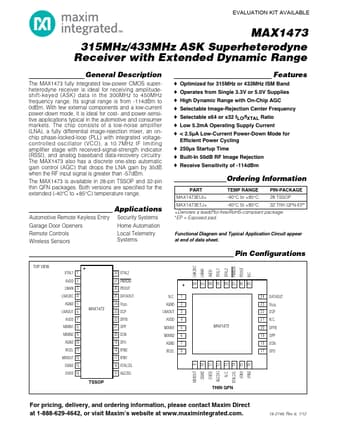

datasheet Preview Page 1 from Datasheet4u.com

MAX1473_MaximIntegratedProducts.pdf

MAX1473 Datasheet Preview — Preview of MAX1473 PDF

Datasheet Details

Part number:

MAX1473

Manufacturer:

Maxim Integrated ↗ Products

File Size:

522.43 KB

Description:

ASK Superheterodyne Receiver

Features

* o Optimized for 315MHz or 433MHz ISM Band o Operates from Single 3.3V or 5.0V Supplies o High Dynamic Range with On-Chip AGC o Selectable Image-Rejection Center Frequency o Selectable x64 or x32 fLO/fXTAL Ratio o Low 5.2mA Operating Supply Current o

Applications

* typical in the automotive and consumer markets. The chip consists of a low-noise amplifier (LNA), a fully differential image-rejection mixer, an onchip phase-locked-loop (PLL) with integrated voltagecontrolled oscillator (VCO), a 10.7MHz IF limiting amplifier stage with received-signal-strength indi
