MAX1557, MAX1556, 1.2A PWM Step-Down DC-DC Converters

19-3336; Rev 0; 7/04 KIT ATION EVALU E L B AVAILA www.DataSheet4U.com 16µA IQ, 1.2A PWM Step-Down DC-DC Converters General .
Features. Up to 97% Efficiency. 95% Efficiency at 1mA Load Current. Low 16µA Quiescent Current. 1MHz PWM Switching.

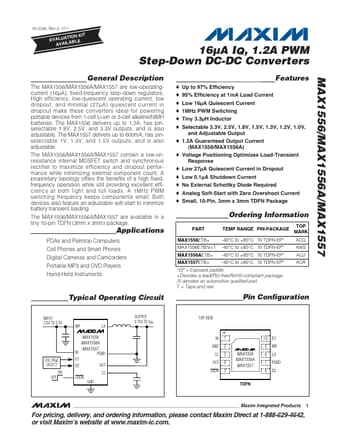

datasheet Preview Page 1 from Datasheet4u.com

MAX1556_MaximIntegratedProducts.pdf

MAX1557 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX1557, MAX1556. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX1557, MAX1556

Manufacturer:

Maxim Integrated ↗ Products

File Size:

384.82 KB

Description:

1.2A PWM Step-Down DC-DC Converters

Note:

This datasheet PDF includes multiple part numbers: MAX1557, MAX1556.
Please refer to the document for exact specifications by model.

Features

* Up to 97% Efficiency
* 95% Efficiency at 1mA Load Current
* Low 16µA Quiescent Current
* 1MHz PWM Switching
* Tiny 3.3µH Inductor
* Selectable 3.3V, 2.5V, 1.8V, 1.5V, 1.3V, 1.0V, and Adjustable Output
* 1.2A Guaranteed Output Current (MAX1556

Applications

* PDAs and Palmtop Computers Cell Phones and Smart Phones Digital Cameras and Camcorders Portable MP3 and DVD Players Hand-Held Instruments MAX1557ETB MAX1556ETB PART Ordering Information TEMP RANGE -40°C to +85°C -40°C to +85°C PIN-PACKAGE 10 TDFN-EP
* (T1033-1) 10 TDFN-EP
* (T1033-1) TOP MARK
