MAX16054 - On/Off Controller

Description

The MAX16054 is a pushbutton on/off controller with a single switch debouncer and built-in latch.

It accepts a noisy input from a mechanical switch and produces a clean latched digital output after a factory-fixed qualification delay.

Features

  • a complementary output, OUT, which is the inverted state of OUT. An asynchronous CLEAR input allows an external signal to force the output flip-flop low. Undervoltage-lockout circuitry ensures that OUT is in the off state upon power-up. The MAX16054 requires no external components, and its low supply current makes it ideal for use in portable equipment. The MAX16054 operates from a +2.7V to +5.5V single supply. The MAX16054 is offered in a 6-pin thin SOT23 package and operates over the -40°C to.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX1605 30V Internal Switch LCD Bias Supply Maxim
MAX160 uP Compatible 8 Bit A/D Converter Maxim
MAX1600 Dual-Channel CardBus and PCMCIA VCC/VPP Power-Switching Networks Maxim
MAX1601 Dual-Channel CardBus and PCMCIA Power Switches with SMBus Serial Interface Maxim
MAX1602 Single-Channel CardBus and PCMCIA VCC/VPP Power-Switching Network Maxim

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX16050 Voltage Monitors/Sequencer Circuits
MAX16051 Voltage Monitors/Sequencer Circuits
MAX16052 High-Voltage Adjustable Sequencing/Supervisory Circuits
MAX16053 High-Voltage Adjustable Sequencing/Supervisory Circuits
MAX16055 Microprocessor Supervisor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

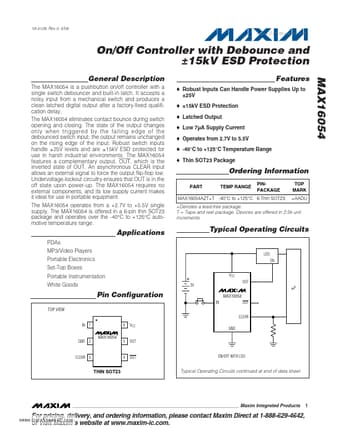

19-4128; Rev 0; 5/08 www.DataSheet4U.com On/Off Controller with Debounce and ±15kV ESD Protection General Description The MAX16054 is a pushbutton on/off controller with a single switch debouncer and built-in latch. It accepts a noisy input from a mechanical switch and produces a clean latched digital output after a factory-fixed qualification delay. The MAX16054 eliminates contact bounce during switch opening and closing. The state of the output changes only when triggered by the falling edge of the debounced switch input; the output remains unchanged on the rising edge of the input. Robust switch inputs handle ±25V levels and are ±15kV ESD protected for use in harsh industrial environments. The MAX16054 features a complementary output, OUT, which is the inverted state of OUT.
