MAX17010

Internal-Switch Boost Regulator

MAX17010 Features

* undervoltage lockout (UVLO), soft-start, and internal current limit. The high-current op amp is designed to drive the LCD backplane (VCOM). The amplifier features high output current (±150mA), fast slew rate (45V/µs), wide bandwidth (20MHz), and rail-to-rail inputs and outputs. The high-voltage, lev

MAX17010 General Description

The MAX17010 contains a high-performance step-up switching regulator, a high-speed operational amplifier (op amp), and a high-voltage level-shifting scan driver. The device is optimized for thin-film transistor (TFT) liquidcrystal display (LCD) applications. The step-up DC-DC converter provides the .

MAX17010 Datasheet (316.86 KB)

Preview of MAX17010 PDF

Datasheet Details

Part number:

MAX17010

Manufacturer:

Maxim Integrated ↗ Products

File Size:

316.86 KB

Description:

Internal-switch boost regulator.
19-0709; Rev 0; 3/07 KIT ATION EVALU E L B A IL AVA www.DataSheet4U.com Internal-Switch Boost Regulator with Integrated High-Voltage Level Shifter .

📁 Related Datasheet

MAX1701 Step-Up DC-DC Converters (Maxim Integrated)

MAX17014 Low-Cost Multiple-Output Power Supply (Maxim Integrated Products)

MAX17015 High-Performance Chargers (Maxim Integrated Products)

MAX17015A High-Performance Chargers (Maxim Integrated Products)

MAX17015B Highest Switching-Frequency Notebook Battery Chargers (Maxim Integrated Products)

MAX17017 Quad-Output Controller (Maxim Integrated Products)

MAX17019 High-Input-Voltage Quad-Output Controller (Maxim Integrated)

MAX170 Serial Output 5.6us 12-Bit A/D Converter (Maxim)

MAX1700 Step-Up DC-DC Converters (Maxim)

MAX17000 Complete DDR2 and DDR3 Memory Power-Management Solution (Maxim Integrated)

TAGS

MAX17010 Internal-Switch Boost Regulator Maxim Integrated Products

Image Gallery

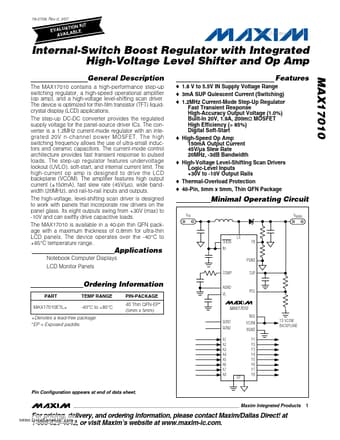

MAX17010 Datasheet Preview Page 2 MAX17010 Datasheet Preview Page 3
