MAX17067 - Low-Noise Step-Up DC-DC Converter

Features

  • o 90% Efficiency o Adjustable Output from VIN to 18V o 2.4A, 0.15Ω, 22V Power MOSFET o +2.6V to +4.0V Input Range o Pin-Selectable 640kHz or 1.2MHz Switching Frequency o Programmable Soft-Start o Small 8-Pin µMAX Package o Integrated Input Voltage Clamp Circuit MAX17067 The MAX17067 boost converter incorporates highperformance (at 1.2MHz), current-mode, fixed-frequency, pulse-width modulation (PWM) circuitry with a built-in 0.15Ω n-channel MOSFET to provide a highly efficient regulator with fa.

📥 Download Datasheet

Datasheet preview – MAX17067

Datasheet Details

Part number MAX17067
Manufacturer Maxim Integrated Products
File Size 337.08 KB
Description Low-Noise Step-Up DC-DC Converter
Datasheet download datasheet MAX17067 Datasheet
Additional preview pages of the MAX17067 datasheet.

📁 Similar Datasheet

  • MAX1706 - 1- to 3-Cell / High-Current / Low-Noise / Step-Up DC-DC Converters (Maxim)
  • MAX170 - Serial Output 5.6us 12-Bit A/D Converter (Maxim)
  • MAX1700 - Step-Up DC-DC Converters (Maxim)
  • MAX17000 - Complete DDR2 and DDR3 Memory Power-Management Solution (Maxim Integrated)
  • MAX17003 - Main PowerSupply Controllers (Maxim Integrated)
  • MAX17003A - Main PowerSupply Controllers (Maxim Integrated)
  • MAX17004 - Main PowerSupply Controllers (Maxim Integrated)
  • MAX17004A - Main PowerSupply Controllers (Maxim Integrated)
  • MAX17007 - Dual and Combinable QPWM Graphics Core Controllers (Maxim Integrated)
  • MAX17007B - Dual and Combinable QPWM Graphics Core Controllers (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX17061 - 8-String White LED Driver
  • MAX17061A - 8-String White LED Driver
  • MAX17062 - TFT-LCD Step-Up DC-DC Converter
  • MAX17000A - Complete DDR2 and DDR3 Memory Power-Management
  • MAX17005 - High-Performance Chargers
  • MAX17005A - High-Performance Chargers
  • MAX17005B - Highest Switching-Frequency Notebook Battery Chargers
  • MAX17006 - High-Performance Chargers

Full PDF Text Transcription

Click to expand full text

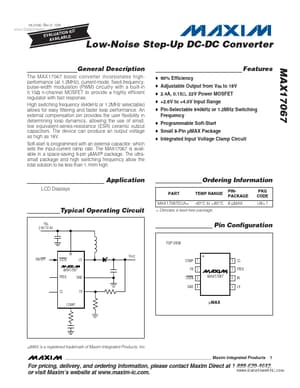

19-3106; Rev 0; 1/08 www.DataSheet4U.com KIT ATION EVALU E L B AVAILA Low-Noise Step-Up DC-DC Converter General Description Features o 90% Efficiency o Adjustable Output from VIN to 18V o 2.4A, 0.15Ω, 22V Power MOSFET o +2.6V to +4.0V Input Range o Pin-Selectable 640kHz or 1.2MHz Switching Frequency o Programmable Soft-Start o Small 8-Pin µMAX Package o Integrated Input Voltage Clamp Circuit MAX17067 The MAX17067 boost converter incorporates highperformance (at 1.2MHz), current-mode, fixed-frequency, pulse-width modulation (PWM) circuitry with a built-in 0.15Ω n-channel MOSFET to provide a highly efficient regulator with fast response. High switching frequency (640kHz or 1.2MHz selectable) allows for easy filtering and faster loop performance.
