MAX329, MAX329CPE - (MAX328 / MAX329) Ultra-Low Leakage Monolithic CMOS Analog Multiplexers

MAX329 Description

19-1006; Rev 3; 2/11 MAX328/MAX329 Ultra-Low Leakage Monolithic CMOS Analog Multiplexers General .
The MAX328/MA329 are monolithic CMOS analog multiplexers.

MAX329 Applications

* Adding an external 40kΩ resistor to each input makes the MAX328/MAX329 an excellent fault-tolerant multiplexer. Low leakage (less than 1pA at +25°C) and 2.5kΩ on-resistance allow the circuit to sustain 110V AC faults indefinitely while maintaining an error of less than 40nV for normal signals (i. e.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX329, MAX329CPE. Please refer to the document for exact specifications by model.

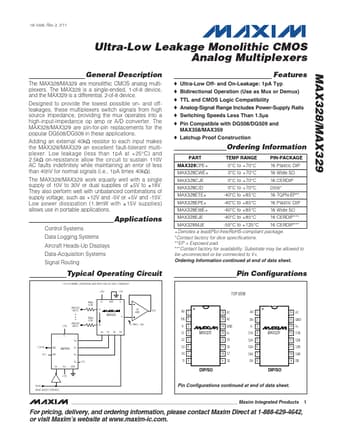

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX329, MAX329CPE
Manufacturer
Maxim Integrated ↗ Products
File Size
135.41 KB
Datasheet
MAX329CPE_MaximIntegratedProducts.pdf
Description
(MAX328 / MAX329) Ultra-Low Leakage Monolithic CMOS Analog Multiplexers
Note
This datasheet PDF includes multiple part numbers: MAX329, MAX329CPE.
Please refer to the document for exact specifications by model.
