MAX4901, Low-RON & Dual-SPST/Single-SPDT Clickless Switches

19-3775; Rev 2; 5/06 www.DataSheet4U.com Low-RON, Dual-SPST/Single-SPDT Clickless Switches with Negative Rail Capability General .
The MAX4901. MAX4905 switches feature negative signal capability that allows signals below ground to pass through without distortion.

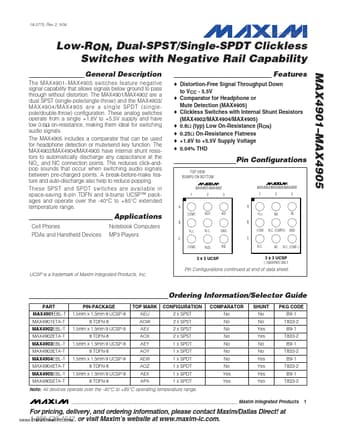

datasheet Preview Page 1 from Datasheet4u.com

MAX4901_MaximIntegratedProducts.pdf

MAX4901 Datasheet Preview — Preview of MAX4901 PDF

Datasheet Details

Part number:

MAX4901

Manufacturer:

Maxim Integrated ↗ Products

File Size:

375.63 KB

Description:

Low-RON & Dual-SPST/Single-SPDT Clickless Switches

Features

* Distortion-Free Signal Throughput Down to VCC - 5.5V
* Comparator for Headphone or Mute Detection (MAX4905)
* Clickless Switches with Internal Shunt Resistors (MAX4902/MAX4904/MAX4905)
* 0.6Ω (typ) Low On-Resistance (RON)
* 0.25Ω On-Resistance Flatness

Applications

* Cell Phones PDAs and Handheld Devices Notebook Computers MP3 Players 3 x 3 UCSP 3 x 3 UCSP ( ) MAX4905 ONLY Pin Configurations continued at end of data sheet. UCSP is a trademark of Maxim Integrated Products, Inc. Ordering Information/Selector Guide PART MAX4901EBL-T MAX4901ETA-T MAX4902EBL-T MA
