MAX4924 - Overvoltage Protectors

This page provides the datasheet information for the MAX4924, a member of the MAX4923 Overvoltage Protectors family.

Description

The MAX4923

MAX4926 overvoltage protection (OVP) controllers protect low-voltage systems against high-voltage faults of up to +28V with an appropriate external pFET.

Features

  • MAX4923.
  • MAX4926.

📥 Download Datasheet

Datasheet preview – MAX4924

📁 Similar Datasheet

  • MAX492 - Single/Dual/Quad / Micropower / Single-Supply Rail-to-Rail Op Amps (Maxim)
  • MAX4920B - Battery Power-Up Logic (Maxim Integrated)
  • MAX4921B - Battery Power-Up Logic (Maxim Integrated)
  • MAX4928A - DisplayPort/PCIe Passive Switches (Maxim Integrated)
  • MAX4928B - DisplayPort/PCIe Passive Switches (Maxim Integrated)
  • MAX490 - Low-Power / Slew-Rate-Limited RS-485/RS-422 Transceivers (Maxim)
  • MAX4906 - FHigh-/Full-Speed USB 2.0 Switches (Maxim Integrated)
  • MAX4908 - Dual 3:1 Clickless Audio Multiplexers (Maxim Integrated)
  • MAX4909 - Dual 3:1 Clickless Audio Multiplexers (Maxim Integrated)
  • MAX490E - RS-485/RS-422 Transceivers (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX4923 - Overvoltage Protectors
  • MAX4925 - Overvoltage Protectors
  • MAX4926 - Overvoltage Protectors
  • MAX4927 - ESD Protection LAN Switch
  • MAX4929E - HDMI 2:1 Low-Frequency Translating Switch
  • MAX4901 - Low-RON & Dual-SPST/Single-SPDT Clickless Switches
  • MAX4902 - Low-RON & Dual-SPST/Single-SPDT Clickless Switches
  • MAX4903 - Low-RON & Dual-SPST/Single-SPDT Clickless Switches

Full PDF Text Transcription

Click to expand full text

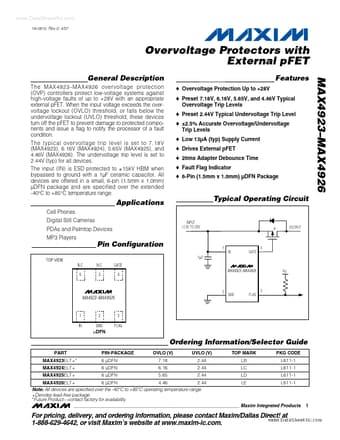

www.DataSheet4U.com 19-0810; Rev 0; 4/07 Overvoltage Protectors with External pFET General Description The MAX4923–MAX4926 overvoltage protection (OVP) controllers protect low-voltage systems against high-voltage faults of up to +28V with an appropriate external pFET. When the input voltage exceeds the overvoltage lockout (OVLO) threshold, or falls below the undervoltage lockout (UVLO) threshold, these devices turn off the pFET to prevent damage to protected components and issue a flag to notify the processor of a fault condition. The typical overvoltage trip level is set to 7.18V (MAX4923), 6.16V (MAX4924), 5.65V (MAX4925), and 4.46V (MAX4926). The undervoltage trip level is set to 2.44V (typ) for all devices.
