MAX5391 - (MAX5391 / MAX5393) Low-Voltage Linear Taper Digital Potentiometers

General Description

The MAX5391/MAX5393 dual 256-tap, volatile, lowvoltage linear taper digital potentiometers offer three end-to-end resistance values of 10kI, 50kI, and 100kI.

Operating from a single +1.7V to +5.5V power supply, these devices provide a low 35ppm/NC end-to-end temperature coefficient.

Key Features

  • S Dual 256-Tap Linear Taper Positions S Single +1.7V to +5.5V Supply Operation S Low 12µA Quiescent Supply Current S 10kI, 50kI, and 100kI End-to-End Resistance General.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX539 +5V / Low-Power / Voltage-Output / Serial 12-Bit DACs Maxim
MAX5395 Low-Voltage Linear Taper Digital Potentiometer Maxim
MAX530 +5V / Low-Power / Parallel-Input / Voltage-Output / 12-Bit DAC Maxim
MAX5302 Low-Power / 12-Bit Voltage-Output DAC with Serial Interface Maxim
MAX5304 10-Bit Voltage-Output DAC in 8-Pin MAX Maxim

Other Datasheets by Maxim Integrated (now Analog Devices)

Part Number Description
MAX5392 Linear Taper Digital Potentiometer
MAX5393 (MAX5391 / MAX5393) Low-Voltage Linear Taper Digital Potentiometers
MAX5312 Voltage-Output DAC
MAX5316 LSB Accuracy Voltage-Output DAC
MAX5322 Voltage-Output DAC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

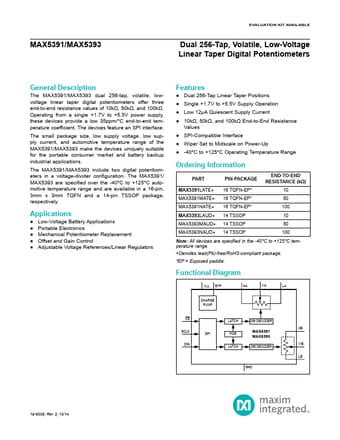

19-5035; Rev 0; 10/09 TION KIT EVALUA BLE IL AVA A Dual 256-Tap, Volatile, Low-Voltage Linear Taper Digital Potentiometers Features S Dual 256-Tap Linear Taper Positions S Single +1.7V to +5.5V Supply Operation S Low 12µA Quiescent Supply Current S 10kI, 50kI, and 100kI End-to-End Resistance General Description The MAX5391/MAX5393 dual 256-tap, volatile, lowvoltage linear taper digital potentiometers offer three end-to-end resistance values of 10kI, 50kI, and 100kI. Operating from a single +1.7V to +5.5V power supply, these devices provide a low 35ppm/NC end-to-end temperature coefficient. The devices feature an SPIK interface.
