MAX5973 - Phase Redundancy Power Supervisor

Description

The MAX5973 protects individual slave phases of a phase redundant DC-DC converter.

The power protection functions comprise an electronic circuit-breaker controller driving an external n-channel MOSFET at the step-down power input, and an internal 3.3V switch for the slave phase-controller power.

Features

  • S 9V to 14V Operating Range S Electronic Circuit-Breaker Controller Drives External n-Channel MOSFET S Internal, 350mA MOSFET for 3.3V Power S Open-Drain Ideal Diode Controller Drives External n-Channel MOSFET S Serial Data Bus Loop/Bypass Function S Serial Data Clock Buffer S Dual Analog Error-Signal Buffer Amplifiers S Active-Low.

📥 Download Datasheet

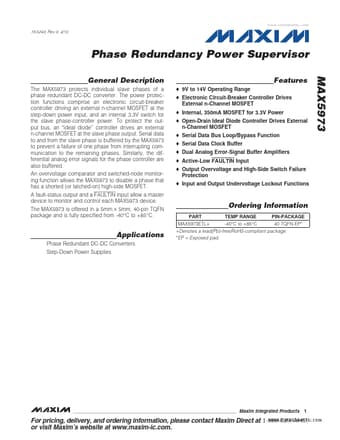

Datasheet preview – MAX5973

📁 Similar Datasheet

  • MAX5976A - Hot-Swap Solution (Maxim Integrated)
  • MAX5976B - Hot-Swap Solution (Maxim Integrated)
  • MAX5900 - -100V SOT23 Simple Swapper Hot-Swap Controllers (Maxim)
  • MAX5901 - -100V SOT23 Simple Swapper Hot-Swap Controllers (Maxim Integrated)
  • MAX5902 - +72V SOT23 Simple Swapper Hot-Swap Controllers (Maxim)
  • MAX5903 - +72V SOT23 Simple Swapper Hot-Swap Controllers (Maxim)
  • MAX5904 - Low-Voltage / Dual Hot-Swap Controllers/Power Sequencers (Maxim)
  • MAX5905 - Low-Voltage / Dual Hot-Swap Controllers/Power Sequencers (Maxim Integrated)
  • MAX5906 - Low-Voltage / Dual Hot-Swap Controllers/Power Sequencers (Maxim Integrated)
  • MAX5907 - Low-Voltage / Dual Hot-Swap Controllers/Power Sequencers (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX5971A - Single-Port 40W IEEE 802.3af/at PSE Controller with Integrated MOSFET
  • MAX5971B - PSE Controller
  • MAX5972A - IEEE 802.3af/at-Compliant Powered Device Interface Controller
  • MAX5974A - Current-Mode PWM Controllers
  • MAX5974B - Current-Mode PWM Controllers
  • MAX5974C - Current-Mode PWM Controllers
  • MAX5974D - Current-Mode PWM Controllers
  • MAX5977A - 1V to 16V / Single-Channel Hot-Swap Controllers

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 19-5243; Rev 0; 4/10 Phase Redundancy Power Supervisor MAX5973 General Description The MAX5973 protects individual slave phases of a phase redundant DC-DC converter. The power protection functions comprise an electronic circuit-breaker controller driving an external n-channel MOSFET at the step-down power input, and an internal 3.3V switch for the slave phase-controller power. To protect the output bus, an “ideal diode” controller drives an external n-channel MOSFET at the slave phase output. Serial data to and from the slave phase is buffered by the MAX5973 to prevent a failure of one phase from interrupting communication to the remaining phases. Similarly, the differential analog error signals for the phase controller are also buffered.
