MAX5984

IEEE 802.3af/at PSE Controller

Maxim Integrated Products

MAX5984 Features

* S IEEE 802.3af/at Compliant S Up to 40W for Single-Port PSE Applications S Integrated 0.5I Power MOSFET and Sense Resistor S 2-Event Pin-Select (MAX5984A/MAX5984B) S PD Detection and Classification S Programmable Current Limit for Class 5 PDs S High-Capacitance Detection for Legacy Devices S

MAX5984 General Description

The MAX5984 is a single-port, power-sourcing equipment (PSE) power controller designed for use in IEEE® 802.3af/at-compliant PSE. This device provides powered device (PD) discovery, classification, current limit, and DC and AC load-disconnect detections. The MAX5984 operates automatically without th.

MAX5984 Datasheet (2.99 MB)

MAX5984 Datasheet Preview — Preview of MAX5984 PDF

Datasheet Details

Part number:

MAX5984

Manufacturer:

Maxim Integrated ↗ Products

File Size:

2.99 MB

Description:

Ieee 802.3af/at pse controller.

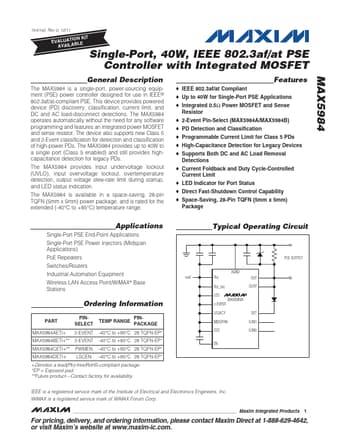

www.DataSheet.co.kr 19-6142; Rev 0; 12/11 TION KIT EVALUA BLE AVAILA Single-Port, 40W, IEEE 802.3af/at PSE Controller with Integrated MOSFET Featur.
