MAX7451 - Video-Signal Conditioners

This page provides the datasheet information for the MAX7451, a member of the MAX7450 Video-Signal Conditioners family.

Description

The MAX7450/MAX7451/MAX7452 complete front-end video-signal conditioners are designed to improve the quality of standard-definition video signals.

The devices restore the DC level of the video input, correct for amplitude errors up to ±6dB, detect fault conditions, and filter out-of-band noise.

Features

  • a user-adjustable clamp level. The devices are available in an 8-pin SO package with an exposed pad and are specified for operation over the extended (-40°C to +85°C) temperature range. Features.
  • Back-Porch Clamp to GND (MAX7450/MAX7451).
  • Adjustable Back-Porch Clamp (MAX7452).
  • Automatic Gain Control (±6dB Range) Normalizes Signals to Standard Video Level.
  • Input Fault Detection with LOS Output.
  • Inherent 50Hz/60Hz Input Rejection of 60dB.
  • Sing.

📥 Download Datasheet

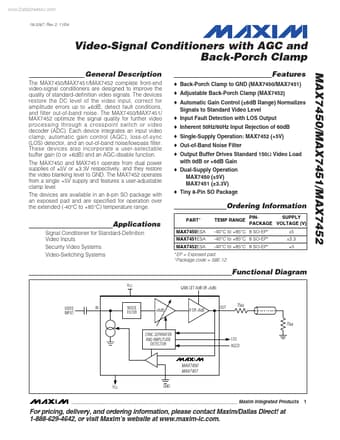

Datasheet preview – MAX7451

Datasheet Details

Part number MAX7451
Manufacturer Maxim Integrated Products
File Size 279.55 KB
Description Video-Signal Conditioners
Datasheet download datasheet MAX7451 Datasheet
Additional preview pages of the MAX7451 datasheet.

📁 Similar Datasheet

  • MAX745 - Switch-Mode Lithium-Ion Battery-Charger (Maxim)
  • MAX7456 - Single-Channel Monochrome On-Screen Display (Maxim)
  • MAX7400 - 8th-Order / Lowpass / Elliptic / Switched-Capacitor Filters (Maxim)
  • MAX7401 - 8th-Order / Lowpass / Bessel / Switched-Capacitor Filters (Maxim)
  • MAX7403 - 8th-Order / Lowpass / Elliptic / Switched-Capacitor Filters (Maxim)
  • MAX7404 - 8th-Order / Lowpass / Elliptic / Switched-Capacitor Filters (Maxim)
  • MAX7405 - 8th-Order / Lowpass / Bessel / Switched-Capacitor Filters (Maxim)
  • MAX7407 - 8th-Order / Lowpass / Elliptic / Switched-Capacitor Filters (Maxim)
  • MAX7408 - Switched-Capacitor Filters (Maxim)
  • MAX7409 - 5th-Order / Lowpass / Switched-Capacitor Filters (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX7450 - Video-Signal Conditioners
  • MAX7452 - Video-Signal Conditioners
  • MAX7453 - Triple Channel Video Reconstruction Filter
  • MAX7454 - HD/SD Switchable Video Filters/Buffers
  • MAX7455 - HD/SD Switchable Video Filters/Buffers
  • MAX7457 - Video Switch
  • MAX741 - Low-Voltage Current-Mode SMPS Controller
  • MAX7440 - (MAX7440 - MAX7442) 6-Channel Integrated Video Reconstruction Filters

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 19-3267; Rev 2; 11/04 Video-Signal Conditioners with AGC and Back-Porch Clamp General Description The MAX7450/MAX7451/MAX7452 complete front-end video-signal conditioners are designed to improve the quality of standard-definition video signals. The devices restore the DC level of the video input, correct for amplitude errors up to ±6dB, detect fault conditions, and filter out-of-band noise. The MAX7450/MAX7451/ MAX7452 optimize the signal quality for further video processing through a crosspoint switch or video decoder (ADC). Each device integrates an input video clamp, automatic gain control (AGC), loss-of-sync (LOS) detector, and an out-of-band noise/lowpass filter. These devices also incorporate a user-selectable buffer gain (0 or +6dB) and an AGC-disable function.
