MAX8601 - Single-/Dual-Input 1-Cell Li Chargers

This page provides the datasheet information for the MAX8601, a member of the MAX8600 Single-/Dual-Input 1-Cell Li Chargers family.

Description

The MAX8600/MAX8601 single-/dual-input linear battery chargers safely charge single-cell Li+ batteries.

The charging rate is optimized to accommodate the thermal characteristics of a given application.

There is no need to reduce the maximum charge current or worst-case charger power dissipation.

Features

  • Single- (MAX8600) or Dual- (MAX8601) Input Li+ Charger.
  • Up to 1A Programmable Fast-Charge.
  • 100mA/500mA USB Select Input (MAX8601).
  • ±5% Fast-Charge Current-Limit Accuracy.
  • 14V Input Overvoltage Protection.
  • Programmable On-Chip Charge Timers.
  • Battery Thermistor Input.
  • Charger-Status Outputs.
  • Thermally Optimized Charge Rate.
  • 14-Pin, 3mm x 3mm TDFN Package Ordering Information PART TEMP RANGE PIN-.

📥 Download Datasheet

Datasheet preview – MAX8601

📁 Similar Datasheet

  • MAX860 - Switched-Capacitor Voltage Converters (Maxim)
  • MAX861 - Switched-Capacitor Voltage Converters (Maxim Integrated)
  • MAX86140 - Best-in-Class Optical Pulse Oximeter and Heart-Rate Sensor (Maxim Integrated)
  • MAX86141 - Best-in-Class Optical Pulse Oximeter and Heart-Rate Sensor (Maxim Integrated)
  • MAX86150 - Integrated Photoplethysmogram and Electrocardiogram Bio-Sensor (Maxim Integrated)
  • MAX863 - Dual / High-Efficiency / PFM / Step-Up DC-DC Controller (Maxim)
  • MAX864 - Dual-Output Charge Pump with Shutdown (Maxim)
  • MAX8649A - 1.8A Step-Down Regulator (Maxim Integrated)
  • MAX865 - Compact / Dual-Output Charge Pump (Maxim)
  • MAX866 - 3.3V/5V or Adjustable-Output / Single-Cell DC-DC Converters (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX8600 - Single-/Dual-Input 1-Cell Li Chargers
  • MAX8600A - Single-Input 1-Cell Li+ Charger
  • MAX8606 - Li+ Linear Battery Charger
  • MAX8607 - 1MHz PWM Boost Converter
  • MAX8614A - (MAX8614A / MAX8614B) Dual-Output (+ and -) DC-DC Converters
  • MAX8614B - (MAX8614A / MAX8614B) Dual-Output (+ and -) DC-DC Converters
  • MAX8620Y - PMIC for Microprocessors or DSPs
  • MAX8621Y - Dual Step-Down DC-DC Power-Management ICs

Full PDF Text Transcription

Click to expand full text

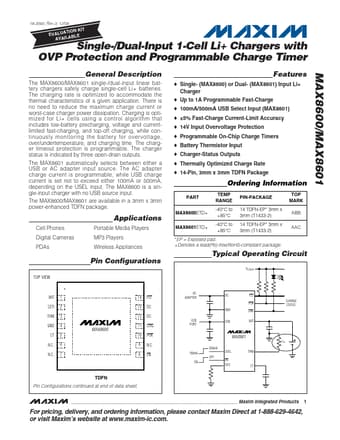

19-3565; Rev 3; 12/08 EVAALVUAAILTAIOBNLEKIT Single-/Dual-Input 1-Cell Li+ Chargers with OVP Protection and Programmable Charge Timer MAX8600/MAX8601 General Description The MAX8600/MAX8601 single-/dual-input linear battery chargers safely charge single-cell Li+ batteries. The charging rate is optimized to accommodate the thermal characteristics of a given application. There is no need to reduce the maximum charge current or worst-case charger power dissipation. Charging is optimized for Li+ cells using a control algorithm that includes low-battery precharging, voltage and currentlimited fast-charging, and top-off charging, while continuously monitoring the battery for overvoltage, over/undertemperature, and charging time. The charger timeout protection is programmable.
