MAX9990 - (MAX9989 / MAX9990) +14dBm to +20dBm LO Buffers

Description

The MAX9989 and MAX9990 LO buffers provide the high output (+14dBm to +20dBm) necessary to drive the LO inputs of high-linearity passive mixers, while offering 40dB reverse isolation to prevent LO pulling.

Features

  • MAX9989/MAX9990.

📥 Download Datasheet

Datasheet preview – MAX9990

📁 Similar Datasheet

  • MAX9993 - High-Linearity 1700MHz to 2200MHz Down- Conversion Mixer with LO Buffer/Switch (Maxim)
  • MAX9995 - Dual / SiGe / High-Linearity / 1700MHz to 2200MHz Downconversion Mixer (Maxim)
  • MAX990 - Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators (Maxim)
  • MAX991 - High-Speed / Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators (Maxim)
  • MAX992 - High-Speed / Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators (Maxim)
  • MAX993 - Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators (Maxim)
  • MAX9937 - Current-Sense Amplifier (Maxim Integrated)
  • MAX994 - Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators (Maxim)
  • MAX995 - High-Speed / Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators (Maxim)
  • MAX996 - High-Speed / Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX999 - Beyond-the-Rails Comparators
  • MAX9994 - 1700MHz to 2200MHz Downconversion Mixer
  • MAX9996 - 1700MHz to 2200MHz Downconversion Mixer
  • MAX9910 - (MAX9910 - MAX9913) Rail-to-Rail I/O Op Amps
  • MAX9911 - (MAX9910 - MAX9913) Rail-to-Rail I/O Op Amps
  • MAX9912 - (MAX9910 - MAX9913) Rail-to-Rail I/O Op Amps
  • MAX9913 - (MAX9910 - MAX9913) Rail-to-Rail I/O Op Amps
  • MAX9914 - (MAX9914 - MAX9917) Rail-to-Rail I/O Op Amps

Full PDF Text Transcription

Click to expand full text

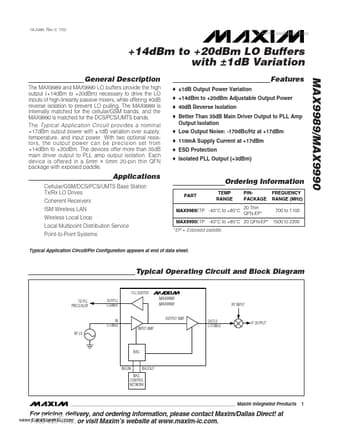

19-2486; Rev 0; 7/02 www.DataSheet4U.com +14dBm to +20dBm LO Buffers with ±1dB Variation General Description The MAX9989 and MAX9990 LO buffers provide the high output (+14dBm to +20dBm) necessary to drive the LO inputs of high-linearity passive mixers, while offering 40dB reverse isolation to prevent LO pulling. The MAX9989 is internally matched for the cellular/GSM bands, and the MAX9990 is matched for the DCS/PCS/UMTS bands. The Typical Application Circuit provides a nominal +17dBm output power with ±1dB variation over supply, temperature, and input power. With two optional resistors, the output power can be precision set from +14dBm to +20dBm. The devices offer more than 35dB main driver output to PLL amp output isolation.
