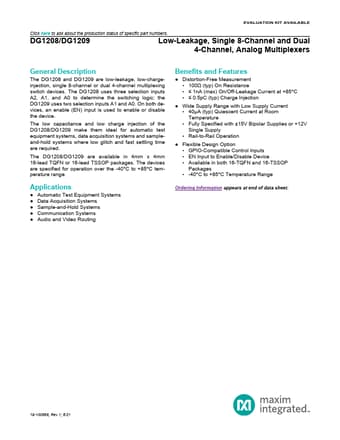

DG1208 Analog Multiplexers

The DG1208 and DG1209 are low-leakage, low-chargeinjection, single 8-channel or dual 4-channel multiplexing switch devices. The DG1208 uses three selection inputs A2, A1, and A0 to determine the switching logic; the DG1209 uses two selection inputs A1 and A0. On both devices, an enable (EN) input is.

DG1208 Features

* Distortion-Free Measurement

* 100Ω (typ) On Resistance

* ≤ 1nA (max) On/Off-Leakage Current at +85°C

* ≤ 0.5pC (typ) Charge Injection

* Wide Supply Range with Low Supply Current

* 40μA (typ) Quiescent Current at Room Temperature

* Fully Specified wit
