DS1315 - Phantom Time

DS1315 Description

19-6080; Rev 11/11 www.dalsemi.com .
The DS1315 Phantom Time Chip is a combination of a CMOS timekeeper and a nonvolatile memory controller.

DS1315 Features

* Real-Time Clock Keeps Track of Hundredths of Seconds, Seconds, Minutes, Hours, Days, Date of the Month, Months, and Years
* Automatic Leap Year Correction Valid Up to 2100
* No Address Space Required to Communicate with RTC
* Provides Nonvolatile Controller Functions for Battery Ba

DS1315 Applications

* Full ±10% VCC Operating Range
* +3.3V or +5V Operation

📥 Download Datasheet

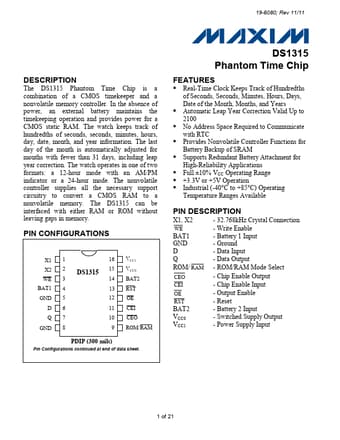

Preview of DS1315 PDF
