DS1973 - 4Kb EEPROM iButton

Datasheet Summary

Features

  • 4096 bits Electrically Erasable Programmable Read Only Memory (EEPROM).
  • Overdrive mode boosts communication speed to 142kbps.
  • 256-bit scratchpad ensures integrity of data transfer.
  • Memory partitioned into 256-bit pages for packetizing data.
  • Reduces control, address, data and power to a single data pin.
  • 8-bit family code specifies DS1973 communication requirements to reader.
  • Reads and writes over a wide voltage range of 2.8V to 6.0V from -40°C to +85°C F3 Micro.

📥 Download Datasheet

Datasheet preview – DS1973

Datasheet Details

Part number DS1973
Manufacturer Maxim Integrated
File Size 69.58 KB
Description 4Kb EEPROM iButton
Datasheet download datasheet DS1973 Datasheet
Additional preview pages of the DS1973 datasheet.

📁 Similar Datasheet

  • DS1973 - 4-kbit EEPROM iButton (Dallas Semiconducotr)
  • DS1971 - 256-Bit EEPROM iButton (Dallas Semiconducotr)
  • DS1972 - 1024-Bit EEPROM iButton (Maxim Integrated Products)
  • DS1976 - Shielded Drum Core Inductors (Tyco Electronics)
  • DS1977 - 32KB EEPROM iButton (Dallas Semiconducotr)
  • DS1923-F5 - Hygrochron Temperature/Humidity Logger iButton with 8kB Data Log Memory (Dallas Semiconducotr)
  • DS19310 - (DS19310 / DS19320) Color TV Manual (Sanyo)
  • DS19320 - (DS19310 / DS19320) Color TV Manual (Sanyo)
  • DS1961S - 1kb Protected EEPROM iButton With SHA-1 Engine (Dallas Semiconducotr)
  • DS1963L - 4k-BIT MONETARY iButton (Dallas Semiconductor)
Other Datasheets by Maxim Integrated
  • DS1971 - 256-Bit EEPROM iButton
  • DS1977 - Password-Protected 32KB EEPROM iButton
  • DS1904 - RTC iButton
  • DS1920 - Temperature iButton
  • DS1921G - Thermochron iButton Device
  • DS1921H - High-Resolution Thermochron iButton Devices
  • DS1921L-F5X - Thermochron iButton
  • DS1921Z - High-Resolution Thermochron iButton Devices

Full PDF Text Transcription

Click to expand full text

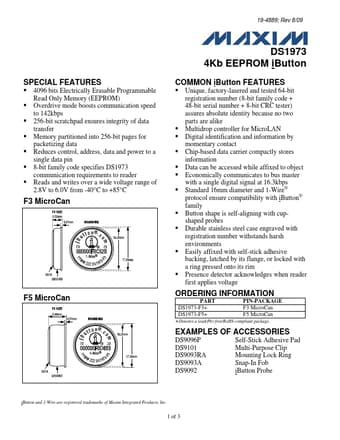

19-4889; Rev 8/09 SPECIAL FEATURES  4096 bits Electrically Erasable Programmable Read Only Memory (EEPROM)  Overdrive mode boosts communication speed to 142kbps  256-bit scratchpad ensures integrity of data transfer  Memory partitioned into 256-bit pages for packetizing data  Reduces control, address, data and power to a single data pin  8-bit family code specifies DS1973 communication requirements to reader  Reads and writes over a wide voltage range of 2.8V to 6.
