DS2422 1-Wire Temperature/Datalogger

DS2422 Description

AVAILABLE DS2422 1-Wire Temperature/Datalogger with 8KB Datalog Memory GENERAL .
The DS2422 temperature/datalogger combines the core functions of a fully featured datalogger in a single chip.

DS2422 Features

* Automatically Wakes Up, Measures Temperature and/or Reads an External ADC and Stores Values in 8KB of Datalog Memory in 8 or 16-Bit Format
* On-Chip Direct-to-Digital Temperature Converter with 8-Bit (0.5°C) or 11-Bit (0.0625°C) Resolution
* Sampling Rate from 1s up to 273hrs
* Pro

DS2422 Applications

* Temperature Logging in Cold Chain, Food Safety, and Bio Science High-Temperature Logging (Process Monitoring, industrial Temperature Monitoring) General-Voltage Datalogging (Pressure, Humidity, Light, Material Stress) PIN CONFIGURATION TOP VIEW VPAD SCLK SDATA CNVST NC NC NC NC AGND X1 A

📥 Download Datasheet

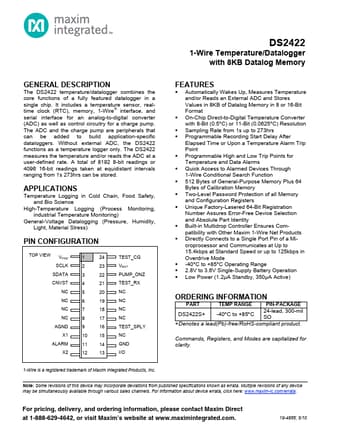

Preview of DS2422 PDF
