DS2788 Datasheet - Maxim Integrated

Stand-Alone Fuel-Gauge

DS2788 Features

* Five 30mA Open-Drain Drivers for Driving LED Fuel-Gauge Display

* Debounced Fuel-Gauge Display Enable

* Internal Voltage Measurement Gain Register for Trimming External Voltage-Divider

* Pin for Driving FETs to Enable Voltage-Divider Only During Voltage Measurement,

DS2788 General Description

The DS2788 measures voltage, temperature, and current, and estimates available capacity for rechargeable lithium-ion (Li+) and Li+ polymer batteries. Cell characteristics and application parameters used in the calculations are stored in on-chip EEPROM. The available capacity registers report a conse.

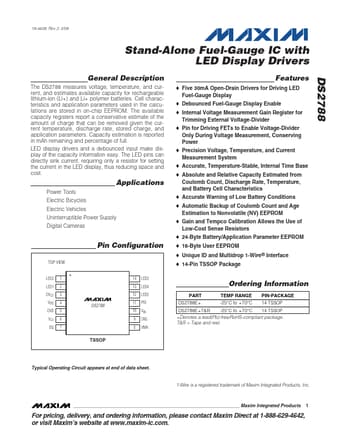

DS2788 Datasheet (510.52 KB)

Preview of DS2788 PDF

Datasheet Details

Part number:

DS2788

Manufacturer:

Maxim Integrated ↗

File Size:

510.52 KB

Description:

Stand-alone fuel-gauge.
