DS28E04-100 - 4096-Bit Addressable 1-Wire EEPROM

Product Overview

📥 Download Datasheet

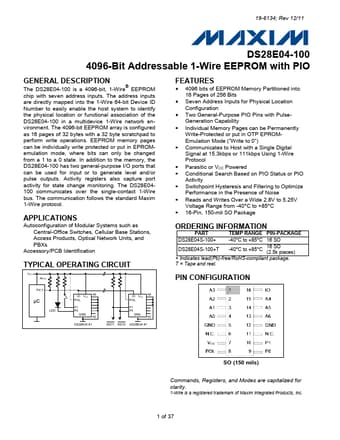

Datasheet preview – DS28E04-100

Datasheet Details

Part number DS28E04-100
Manufacturer Maxim Integrated
File Size 723.50 KB
Description 4096-Bit Addressable 1-Wire EEPROM
Datasheet download datasheet DS28E04-100 Datasheet
Additional preview pages of the DS28E04-100 datasheet.

Product details

Description

The DS28E04-100 is a 4096-bit, 1-Wire® EEPROM chip with seven address inputs.The address inputs are directly mapped into the 1-Wire 64-bit Device ID Number to easily enable the host system to identify the physical location or functional association of the DS28E04-100 in a multidevice 1-Wire network environment.The 4096-bit EEPROM array is configured as 16 pages of 32 bytes with a 32 byte scratchpad to perform write operations.EEPROM memory pages can be individually write protected or put in E
