MAX1261 Datasheet - Maxim Integrated

MAX1261, 12-Bit ADC

19-2719; Rev 0; 04/03 MAX1261/MAX1263 250ksps, +3V, 8-/4-Channel, 12-Bit ADCs with +2.5V Reference and Parallel Interface General .
The MAX1261/MAX1263 low-power, 12-bit analog-todigital converters (ADCs) feature a successive-approximation ADC, automatic power-down, fast wake-up (2.

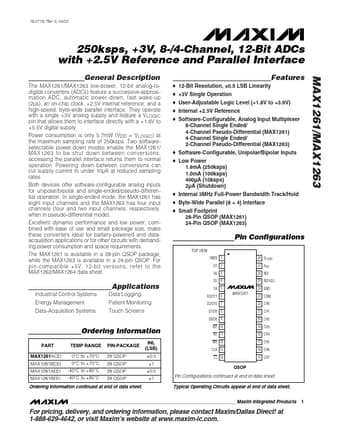

datasheet Preview Page 1 from Datasheet4u.com

MAX1261-MaximIntegrated.pdf

MAX1261 Datasheet Preview — Preview of MAX1261 PDF

Datasheet Details

Part number:

MAX1261

Manufacturer:

Maxim Integrated ↗

File Size:

357.63 KB

Description:

12-Bit ADC

Features

* o 12-Bit Resolution, ±0.5 LSB Linearity o +3V Single Operation o User-Adjustable Logic Level (+1.8V to +3.6V) o Internal +2.5V Reference o Software-Configurable, Analog Input Multiplexer 8-Channel Single Ended/ 4-Channel Pseudo-Differential (MAX1261) 4-Channel Single Ended/ 2-Channel Pseudo-Differen

Applications

* or for other circuits with demanding power consumption and space requirements. The MAX1261 is available in a 28-pin QSOP package, while the MAX1263 is available in a 24-pin QSOP. For pin-compatible +5V, 12-bit versions, refer to the MAX1262/MAX1264 data sheet. Industrial Control Systems Energy Mana
