MAX13206E, MAX13202E, +-30kV ESD Protectors

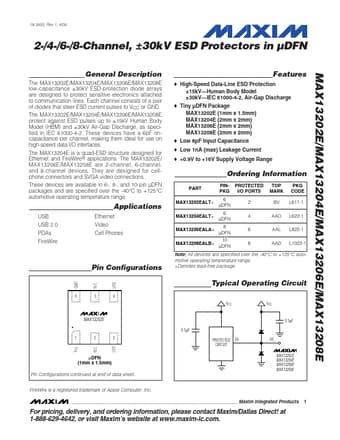

19-3855; Rev 1; 4/06 2-/4-/6-/8-Channel, ±30kV ESD Protectors in µDFN MAX13202E/MAX13204E/MAX13206E/MAX13208E General .
The MAX13202E/MAX13204E/MAX13206E/MAX13208E low-capacitance ±30kV ESD-protection diode arrays are designed to protect sensitive electronics attached.

datasheet Preview Page 1 from Datasheet4u.com

MAX13202E-MaximIntegrated.pdf

MAX13206E Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX13206E, MAX13202E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX13206E, MAX13202E

Manufacturer:

Maxim Integrated ↗

File Size:

379.87 KB

Description:

+-30kV ESD Protectors

Note:

This datasheet PDF includes multiple part numbers: MAX13206E, MAX13202E.
Please refer to the document for exact specifications by model.

Features

* High-Speed Data-Line ESD Protection ±15kV
* Human Body Model ±30kV
* IEC 61000-4-2, Air-Gap Discharge
* Tiny µDFN Package MAX13202E (1mm x 1.5mm) MAX13204E (2mm x 2mm) MAX13206E (2mm x 2mm) MAX13208E (2mm x 2mm)
* Low 6pF Input Capacitance
* Low 1nA (max

Applications

* The MAX13202E/ MAX13206E/MAX13208E are 2-channel, 6-channel, and 8-channel devices. They are designed for cellphone connectors and SVGA video connections. These devices are available in 6-, 8-, and 10-pin µDFN packages and are specified over the -40°C to +125°C automotive operating temperature rang
