MAX17007

Dual and Combinable QPWM Graphics Core Controllers

Maxim Integrated

MAX17007 General Description

The MAX17007/MAX17008 are dual Quick-PWM™ stepdown controllers intended for general power generation in battery-powered systems. The two switched-mode power supplies (SMPSs) can also be combined to operate in a two-phase single-output mode. Constant ontime Quick-PWM operation provides fast response.

MAX17007 Datasheet (530.62 KB)

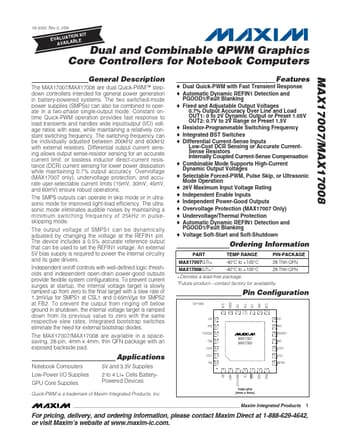

MAX17007 Datasheet Preview — Preview of MAX17007 PDF

Datasheet Details

Part number:

MAX17007

Manufacturer:

Maxim Integrated ↗

File Size:

530.62 KB

Description:

Dual and combinable qpwm graphics core controllers.
19-3200; Rev 0; 2/08 EVAALVUAAILTAIOBNLEKIT Dual and Combinable QPWM Graphics Core Controllers for Notebook Computers MAX17007/MAX17008 General Desc.
