MAX17222, MAX17220 - nanoPower Synchronous Boost Converter

Maxim Integrated

The MAX17222 by Maxim Integrated is a nanoPower Synchronous Boost Converter. Below is the official datasheet preview.

📥 Download Datasheet

MAX17222 nanoPower Synchronous Boost Converter by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX17222** nanoPower Synchronous Boost Converter datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX17222, MAX17220
Manufacturer	Maxim Integrated
File Size	1.00 MB
Description	nanoPower Synchronous Boost Converter
Datasheet	MAX17220-MaximIntegrated.pdf
Note	This datasheet PDF includes multiple part numbers: MAX17222, MAX17220. Please refer to the document for exact specifications by model.

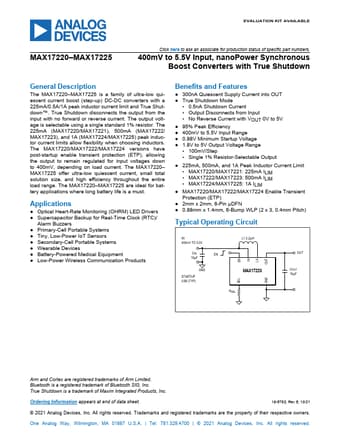

Additional preview pages of the MAX17222 datasheet.

MAX17222 Product details

Description

The MAX17220 MAX17225 is a family of ultra-low quiescent current boost (step-up) DC-DC converters with a 225mA/0.5A/1A peak inductor current limit and True Shutdown™.

Features

300nA Quiescent Supply Current into OUT.
True Shutdown Mode.
0.5nA Shutdown Current.
Output Disconnects from Input.
No Reverse Current with VOUT 0V to 5V.
95% Peak Efficiency.
400mV to 5.5V Input Range.
0.88V Minimum Startup Voltage.
1.8V to 5V Output Voltage Range.
100mV/Step.
Single 1% Resistor-Selectable Output.
225mA, 500mA, and 1A Peak Inductor Current Limit.
MAX17220/MAX17221: 225mA ILIM.
MAX.
