MAX20021 - Step-Down DC-DC Converters

Description

The MAX20021/MAX20022 power-management ICs (PMICs) integrate four low-voltage, high-efficiency, stepdown DC-DC converters.

Each of the four outputs is factory or resistor programmable between 1.0V to 4.0V and can deliver up to 1.0A of current.

Features

  • including: input overvoltage protection, input undervoltage monitoring, input undervoltage lockout, cycle-by-cycle current limiting, and overtemperature shutdown. The input undervoltage monitor indicates a brownout condition by driving PG_ low when the input falls below the UVM threshold. The MAX20021/MAX20022 PMICs are available in a 28-pin TQFN package with an exposed pad and are specified for operation over the -40ºC to +125ºC automotive temperature range.

📥 Download Datasheet

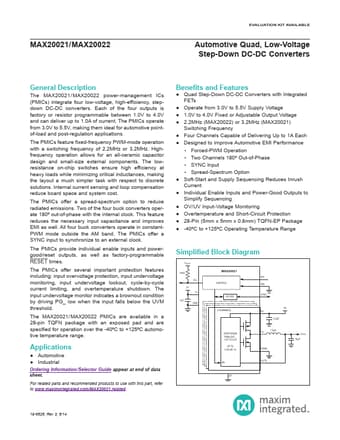

Datasheet preview – MAX20021

📁 Similar Datasheet

  • MAX200 - RS-232 Transceivers (Maxim)
  • MAX20011E - Automotive Single 8A Step-Down Converters (Analog Devices)
  • MAX20011F - Automotive Single 12A Step-Down Converters (Analog Devices)
  • MAX20011G - Automotive Single 16A Step-Down Converters (Analog Devices)
  • MAX2003 - NiCd/NiMH Battery Fast-Charge Controllers (Maxim)
  • MAX20030 - Front-End Power Supply (Analog Devices)
  • MAX20031 - Front-End Power Supply (Analog Devices)
  • MAX20042F - Automotive Hi-Speed USB 2.0 Protectors (Analog Devices)
  • MAX20043F - Automotive Hi-Speed USB 2.0 Protectors (Analog Devices)
  • MAX20044F - Automotive Hi-Speed USB 2.0 Protectors (Analog Devices)
Other Datasheets by Maxim Integrated
  • MAX20022 - Step-Down DC-DC Converters
  • MAX20002 - 2A/3A Fully Integrated Step-Down Converters
  • MAX20003 - 2A/3A Fully Integrated Step-Down Converters
  • MAX2003A - NiCd/NiMH Battery Fast-Charge Controllers
  • MAX20070 - Integrated TFT Power Supplies and LED Backlight Drivers
  • MAX20070B - Integrated TFT Power Supplies and LED Backlight Drivers
  • MAX20090 - High-Brightness LED Controller
  • MAX20090B - High-Brightness LED Controller

Full PDF Text Transcription

Click to expand full text
MAX20021/MAX20022 EVALUATION KIT AVAILABLE Automotive Quad, Low-Voltage Step-Down DC-DC Converters General Description The MAX20021/MAX20022 power-management ICs (PMICs) integrate four low-voltage, high-efficiency, stepdown DC-DC converters. Each of the four outputs is factory or resistor programmable between 1.0V to 4.0V and can deliver up to 1.0A of current. The PMICs operate from 3.0V to 5.5V, making them ideal for automotive pointof-load and post-regulation applications. The PMICs feature fixed-frequency PWM-mode operation with a switching frequency of 2.2MHz or 3.2MHz. Highfrequency operation allows for an all-ceramic capacitor design and small-size external components.
