MAX20408 - Automotive 36V 8A/10A Fully-Integrated Buck Converter

Description

The MAX20408/MAX20410 are automotive, highly-integrated synchronous buck converters with internal highside and low-side switches.

The ICs are designed to deliver up to 8A/10A with input voltages from 3.0V to 36V.

The voltage quality can be monitored by the PGOOD signal.

Features

  • High-Power DC/DC Converter in Small Solution Size.
  • 3.0V to 36V Operating Input Voltage Range.
  • Integrated High-Side and Low-Side FETs.
  • 8A/10A Maximum Output Current.
  • 400kHz and 2.1MHz Fixed Frequency Options.
  • Fixed 2.5ms Soft-Start Time.
  • 34ns Minimum On Time.
  • Programmable 0.8V to 10V Output with 400kHz, 0.8V to 6V Output with 2.1MHz, or Fixed Output Options.
  • ±1.8% Output Voltage Accuracy.
  • Symmetric and Balanced.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX20408 Fully Integrated Buck Converters Analog Devices
MAX20408E Fully Integrated Buck Converters Analog Devices
MAX20402 Fully Integrated Synchronous Silent Switcher Buck Converters Analog Devices
MAX20403 Fully Integrated Synchronous Silent Switcher Buck Converters Analog Devices
MAX20404 Automotive 36V Synchronous Silent Switcher Buck Converters Analog Devices

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX20410 Automotive 36V 8A/10A Fully-Integrated Buck Converter
MAX2042A 1600MHz to 3900MHz Upconversion/Downconversion Mixer
MAX20002 2A/3A Fully Integrated Step-Down Converters
MAX20003 2A/3A Fully Integrated Step-Down Converters
MAX20021 Step-Down DC-DC Converters

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

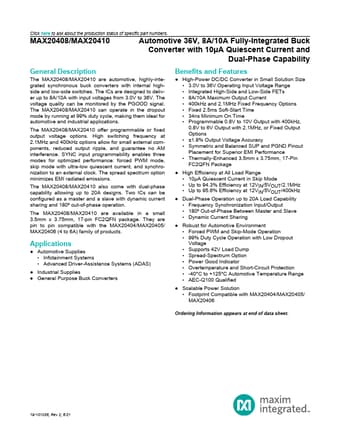

Click here to ask about the production status of specific part numbers. MAX20408/MAX20410 Automotive 36V, 8A/10A Fully-Integrated Buck Converter with 10μA Quiescent Current and Dual-Phase Capability General Description The MAX20408/MAX20410 are automotive, highly-integrated synchronous buck converters with internal highside and low-side switches. The ICs are designed to deliver up to 8A/10A with input voltages from 3.0V to 36V. The voltage quality can be monitored by the PGOOD signal. The MAX20408/MAX20410 can operate in the dropout mode by running at 99% duty cycle, making them ideal for automotive and industrial applications. The MAX20408/MAX20410 offer programmable or fixed output voltage options. High switching frequency at 2.
