MAX2306 - CDMA IF VGAs and I/Q Demodulators

Datasheet Summary

Description

The MAX2306/MAX2308/MAX2309 are IF receivers designed for dual-band, dual-mode, and single-mode N-CDMA and W-CDMA cellular phone systems.

The signal path consists of a variable-gain amplifier (VGA) and I/Q demodulator.

Features

  • Complete IF Subsystem Includes VCO and Synthesizer.
  • Supports Dual-Band, Triple-Mode Operation.
  • VGA with >110dB Gain Control.
  • Quadrature Demodulator.
  • High Output Level (2.7V).
  • Programmable Charge-Pump Current.
  • Supports Any IF Frequency Between 40MHz and 300MHz.
  • 3-Wire Programmable Interface.
  • Low Supply Voltage (+2.7V) PART MAX2306EGI MAX2306ETI MAX2308EGI MAX2308ETI MAX2309EGI MAX2309ETI.
  • Exposed paddle Orderi.

📥 Download Datasheet

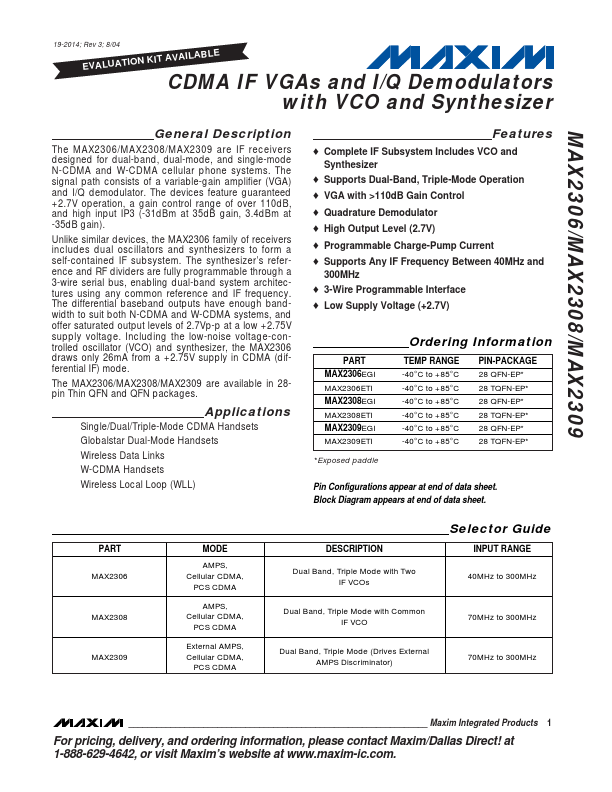

Datasheet preview – MAX2306

Datasheet Details

Part number MAX2306
Manufacturer Maxim Integrated
File Size 188.49 KB
Description CDMA IF VGAs and I/Q Demodulators
Datasheet download datasheet MAX2306 Datasheet

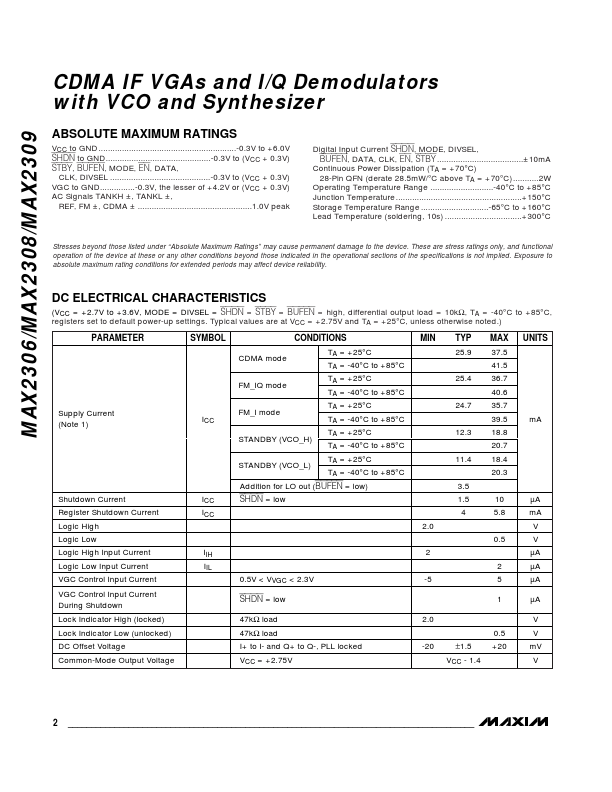

Additional preview pages of the MAX2306 datasheet.

📁 Similar Datasheet

  • MAX230 - Multichannel RS-232 Drivers/Receivers (Maxim)
  • MAX2310 - CDMA IF VGAs and I/Q Demodulators (Maxim)
  • MAX2314 - CDMA IF VGAs and I/Q Demodulators (Maxim)
  • MAX232 - Dual EIA-232 Drivers/Receivers (Texas Instruments)
  • MAX232 - 5V Dual channel RS-232 Drivers/Receivers (HTC)
  • MAX232 - Multichannel RS-232 Drivers/Receivers (Maxim)
  • MAX232 - Multi-Channel RS-232 Drivers/Receivers (UMW)
  • MAX2320 - SiGe Dual-Band LNA/Mixer (Maxim)
  • MAX2321 - SiGe Dual-Band LNA/Mixer (Maxim)
  • MAX2322 - SiGe Dual-Band LNA/Mixer (Maxim)
Other Datasheets by Maxim Integrated
  • MAX2308 - CDMA IF VGAs and I/Q Demodulators
  • MAX2309 - CDMA IF VGAs and I/Q Demodulators
  • MAX231 - Multichannel RS-232 Drivers/Receivers
  • MAX2312 - CDMA IF VGAs and I/Q Demodulators
  • MAX2316 - CDMA IF VGAs and I/Q Demodulators
  • MAX232A - Multichannel RS-232 Drivers/Receivers
  • MAX233 - Multichannel RS-232 Drivers/Receivers
  • MAX20002 - 2A/3A Fully Integrated Step-Down Converters

Full PDF Text Transcription

Click to expand full text
MAX2306/MAX2308/MAX2309 19-2014; Rev 3; 8/04 EVALUATION KIT AVAILABLE CDMA IF VGAs and I/Q Demodulators with VCO and Synthesizer General Description The MAX2306/MAX2308/MAX2309 are IF receivers designed for dual-band, dual-mode, and single-mode N-CDMA and W-CDMA cellular phone systems. The signal path consists of a variable-gain amplifier (VGA) and I/Q demodulator. The devices feature guaranteed +2.7V operation, a gain control range of over 110dB, and high input IP3 (-31dBm at 35dB gain, 3.4dBm at -35dB gain). Unlike similar devices, the MAX2306 family of receivers includes dual oscillators and synthesizers to form a self-contained IF subsystem.
