MAX2411A

Low-Cost RF Up/Downconverter

Maxim Integrated

MAX2411A Features

* o Low-Cost Silicon Bipolar Design o Integrated Upconvert/Downconvert Function o Operates from a Single +2.7V to +5.5V Supply o 3.2dB Combined Receiver Noise Figure: 2.4dB (LNA) 9.2dB (mixer) o Flexible Power-Amplifier Driver: 18dBm Output Third-Order Intercept (OIP3) 35dB Gain-Control Range o LO Buf

MAX2411A General Description

The MAX2411A performs the RF front-end transmit/ receive function in time-division-duplex (TDD) communication systems. It operates over a wide frequency range and is optimized for RF frequencies around 1.9GHz. Applications include most popular cordless and PCS standards. The MAX2411A includes a low.

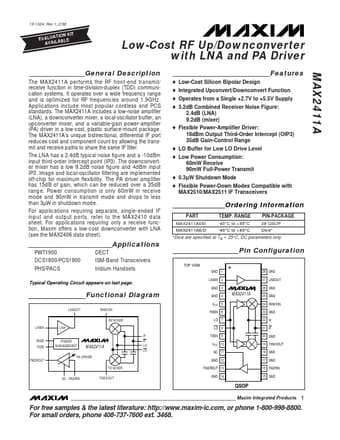

MAX2411A Datasheet (132.22 KB)

MAX2411A Datasheet Preview — Preview of MAX2411A PDF

Datasheet Details

Part number:

MAX2411A

Manufacturer:

Maxim Integrated ↗

File Size:

132.22 KB

Description:

Low-cost rf up/downconverter.
