MAX2980 - Powerline Communication Analog Front-End Transceiver

MAX2980 Description

19-3534; Rev 0; 1/05 Powerline Communication Analog Front-End Transceiver General .
The MAX2980 powerline communication analog frontend (AFE) integrated circuit (IC) is a state-of-the-art CMOS device that delivers high performance and.

MAX2980 Features

* Fully Integrated Line Driver and Receiver
* Seamless Interface to Digital PHY ICs
* Fully Integrated 10-Bit ADC and DAC with 50MHz Sampling
* 54dB Adaptive Gain Control
* Minimum Line Impedance Capability as Low as 10Ω
* 3.0V to 3.6V I/O
* 25

MAX2980 Applications

* Local Area Networking (LAN) RESETIN AGND STBY ENTX AVDD SWR I. C. I. C. Pin Configuration FREEZE DGND 50 AGND AGND AGND DVDD 49 48 47 46 45 44 43 42 41 AVDD 55 AVDD 54 Audio-Over-Powerline Voice-Over-Powerline Security Remote Monitoring and Control Broadband Access (Last-Mile) Powerline-to-WiFi Brid

📥 Download Datasheet

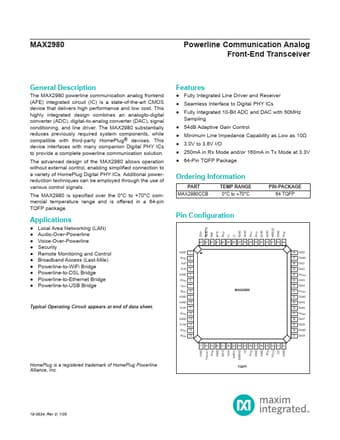

Preview of MAX2980 PDF
