MAX30100 - Pulse Oximeter and Heart-Rate Sensor

Datasheet Summary

Description

The MAX30100 is an integrated pulse oximetry and heartrate monitor sensor solution.

It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals.

Features

  • Complete Pulse Oximeter and Heart-Rate Sensor Solution Simplifies Design.
  • Integrated LEDs, Photo Sensor, and High-Performance Analog Front -End.
  • Tiny 5.6mm x 2.8mm x 1.2mm 14-Pin Optically Enhanced System-in-Package.
  • Ultra-Low-Power Operation Increases Battery Life for Wearable Devices.
  • Programmable Sample Rate and LED Current for Power Savings.
  • Ultra-Low Shutdown Current (0.7µA, typ).
  • Advanced Functionality Improves Measurem.

📥 Download Datasheet

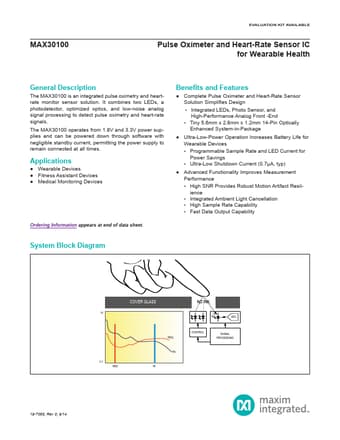

Datasheet preview – MAX30100
