MAX40203 - 1A Ideal Diodes

Description

The MAX40203 is an ideal diode current-switch with forward voltage drop that is approximately an order of magnitude smaller than that of Schottky diodes.

When forward biased and enabled, the MAX40203 conducts with 90mV of voltage drop while carrying currents as high as 1A.

Features

  • Lower Voltage Drop in Portable.

📥 Download Datasheet

Datasheet preview – MAX40203

📁 Similar Datasheet

  • MAX4020 - Low-Cost / High-Speed / SOT23 / Single-Supply Op Amps (Maxim)
  • MAX40200 - 1A Ideal Diode (Analog Devices)
  • MAX402 - Micropower Op Amps (Maxim)
  • MAX4022 - Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers (Maxim)
  • MAX400 - Ultra Low Offset Voltage Operational Amplifier (Maxim)
  • MAX4000 - 2.5GHz 45dB RF-Detecting Controllers (Maxim)
  • MAX40002 - nanoPower 4-Bump Comparator (Analog Devices)
  • MAX40003 - nanoPower 4-Bump Comparator (Analog Devices)
  • MAX40004 - nanoPower 4-Bump Comparator (Analog Devices)
  • MAX40005 - nanoPower 4-Bump Comparator (Analog Devices)
Other Datasheets by Maxim Integrated
  • MAX40200 - 1A Ideal Diode
  • MAX40201 - 0V to 76V Current-Sense Amplifier
  • MAX4023 - 2:1 Video Multiplexer-Amplifiers
  • MAX4024 - 2:1 Video Multiplexer-Amplifiers
  • MAX4025 - 2:1 Video Multiplexer-Amplifiers
  • MAX4026 - 2:1 Video Multiplexer-Amplifiers
  • MAX4028 - 2:1 Video Multiplexer-Amplifiers
  • MAX4029 - 2:1 Video Multiplexer-Amplifiers

Full PDF Text Transcription

Click to expand full text

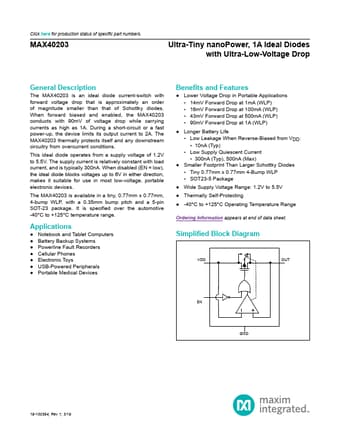

Click here for production status of specific part numbers. MAX40203 Ultra-Tiny nanoPower, 1A Ideal Diodes with Ultra-Low-Voltage Drop General Description The MAX40203 is an ideal diode current-switch with forward voltage drop that is approximately an order of magnitude smaller than that of Schottky diodes. When forward biased and enabled, the MAX40203 conducts with 90mV of voltage drop while carrying currents as high as 1A. During a short-circuit or a fast power-up, the device limits its output current to 2A. The MAX40203 thermally protects itself and any downstream circuitry from overcurrent conditions. This ideal diode operates from a supply voltage of 1.2V to 5.5V. The supply current is relatively constant with load current, and is typically 300nA.
