MAX4311 - Video Multiplexer-Amplifiers

This page provides the datasheet information for the MAX4311, a member of the MAX4310 Video Multiplexer-Amplifiers family.

Datasheet Summary

Description

The MAX4310

MAX4315 single-supply mux-amps combine high-speed operation, low-glitch switching, and excellent video specifications.

The six products in this family are differentiated by the number of multiplexer inputs and the gain configuration.

📥 Download Datasheet

Datasheet preview – MAX4311

Datasheet Details

Part number MAX4311
Manufacturer Maxim Integrated
File Size 294.68 KB
Description Video Multiplexer-Amplifiers
Datasheet download datasheet MAX4311 Datasheet
Additional preview pages of the MAX4311 datasheet.

📁 Similar Datasheet

  • MAX430 - 15V Chopper-Stabilized Operational Amplifier (Maxim)
  • MAX4304 - Op Amps (Maxim)
  • MAX4305 - Op Amps (Maxim)
  • MAX4321 - Low-Cost / Low-Voltage / Rail-to-Rail / Input/Output / SOT23 5MHz Op Amp (Maxim)
  • MAX4322 - Single/Dual/Quad / Low-Cost / SOT23 / Low-Power / Rail-to-Rail I/O Op Amps (Maxim)
  • MAX4323 - Single/Dual/Quad / Low-Cost / SOT23 / Low-Power / Rail-to-Rail I/O Op Amps (Maxim)
  • MAX4326 - Single/Dual/Quad / Low-Cost / SOT23 / Low-Power / Rail-to-Rail I/O Op Amps (Maxim)
  • MAX4327 - Single/Dual/Quad / Low-Cost / SOT23 / Low-Power / Rail-to-Rail I/O Op Amps (Maxim)
  • MAX4329 - Single/Dual/Quad / Low-Cost / SOT23 / Low-Power / Rail-to-Rail I/O Op Amps (Maxim)
  • MAX4330 - Single/Dual/Quad / Low-Power / Single-Supply / Rail-to-Rail I/O Op Amps with Shutdown (Maxim)
Other Datasheets by Maxim Integrated
  • MAX4310 - Video Multiplexer-Amplifiers
  • MAX4312 - Video Multiplexer-Amplifiers
  • MAX4313 - Video Multiplexer-Amplifiers
  • MAX4314 - Video Multiplexer-Amplifiers
  • MAX4315 - Video Multiplexer-Amplifiers
  • MAX4308 - Ultra-Low-Distortion Op Amps
  • MAX4309 - Ultra-Low-Distortion Op Amps
  • MAX4353 - Single-Supply Op Amps

Full PDF Text Transcription

Click to expand full text

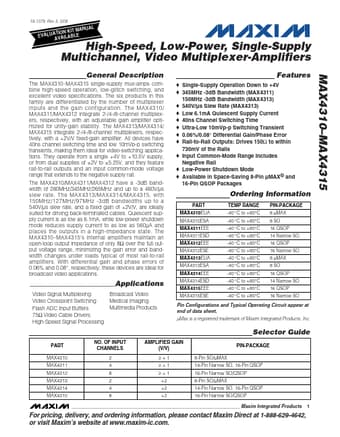

19-1379; Rev 3; 3/08 EVALUAATVIOANILKAIBTLMEANUAL High-Speed, Low-Power, Single-Supply Multichannel, Video Multiplexer-Amplifiers MAX4310–MAX4315 General Description The MAX4310–MAX4315 single-supply mux-amps combine high-speed operation, low-glitch switching, and excellent video specifications. The six products in this family are differentiated by the number of multiplexer inputs and the gain configuration. The MAX4310/ MAX4311/MAX4312 integrate 2-/4-/8-channel multiplexers, respectively, with an adjustable gain amplifier optimized for unity-gain stability. The MAX4313/MAX4314/ MAX4315 integrate 2-/4-/8-channel multiplexers, respectively, with a +2V/V fixed-gain amplifier.
