MAX4353 - Single-Supply Op Amps

Datasheet Summary

Description

The MAX4452/MAX4352 single, MAX4453/MAX4353 dual, and MAX4454/MAX4354 quad amplifiers combine high-speed performance with ultra-low power consumption.

Features

  • o Ultra-Low 620µA Supply Current o High Speed (MAX4452/MAX4453/MAX4454) 200MHz -3dB Bandwidth 30MHz 0.1dB Gain Flatness 95V/µs Slew Rate o High Speed (MAX4352/MAX4353/MAX4354) 80MHz -3dB Bandwidth 4MHz 0.1dB Gain Flatness 240V/µs Slew Rate o Single +3V/+5V Operation o Rail-to-Rail Outputs o Ultra-Small SC70-5, SOT23-5, SOT23-8 and Thin SOT23-8 Packages Ordering Information PART TEMP RANGE PIN-.

📥 Download Datasheet

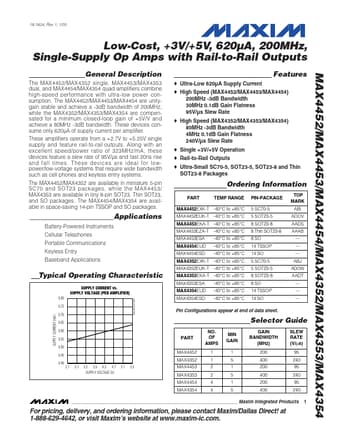

Datasheet preview – MAX4353

Datasheet Details

Part number MAX4353
Manufacturer Maxim Integrated
File Size 753.01 KB
Description Single-Supply Op Amps
Datasheet download datasheet MAX4353 Datasheet
Additional preview pages of the MAX4353 datasheet.

📁 Similar Datasheet

  • MAX435 - Wideband Trasconductance Amplifiers (Maxim)
  • MAX4352 - Single-Supply Op Amps (Maxim)
  • MAX4355 - 16x16 Nonblocking Video Crosspoint Switch (Maxim Integrated Products)
  • MAX4357 - 32 X 16 Nonblocking Video Crosspoint Switch (Maxim Integrated Products)
  • MAX4358 - 32 x 16 Nonblocking Video Crosspoint Switch with On-Screen Display Insertion and I/O Buffers (Maxim)
  • MAX4359 - Video Crosspoint Switches (Maxim)
  • MAX430 - 15V Chopper-Stabilized Operational Amplifier (Maxim)
  • MAX4304 - Op Amps (Maxim)
  • MAX4305 - Op Amps (Maxim)
  • MAX4321 - Low-Cost / Low-Voltage / Rail-to-Rail / Input/Output / SOT23 5MHz Op Amp (Maxim)
Other Datasheets by Maxim Integrated
  • MAX4354 - Single-Supply Op Amps
  • MAX4308 - Ultra-Low-Distortion Op Amps
  • MAX4309 - Ultra-Low-Distortion Op Amps
  • MAX4310 - Video Multiplexer-Amplifiers
  • MAX4311 - Video Multiplexer-Amplifiers
  • MAX4312 - Video Multiplexer-Amplifiers
  • MAX4313 - Video Multiplexer-Amplifiers
  • MAX4314 - Video Multiplexer-Amplifiers

Full PDF Text Transcription

Click to expand full text
19-1824; Rev 1; 1/05 MAX4452/MAX4453/MAX4454/MAX4352/MAX4353/MAX4354 Low-Cost, +3V/+5V, 620µA, 200MHz, Single-Supply Op Amps with Rail-to-Rail Outputs SUPPLY CURRENT (mA) MAX4452/3/4 toc01 General Description The MAX4452/MAX4352 single, MAX4453/MAX4353 dual, and MAX4454/MAX4354 quad amplifiers combine high-speed performance with ultra-low power consumption. The MAX4452/MAX4453/MAX4454 are unitygain stable and achieve a -3dB bandwidth of 200MHz, while the MAX4352/MAX4353/MAX4354 are compensated for a minimum closed-loop gain of +5V/V and achieve a 80MHz -3dB bandwidth. These devices consume only 620µA of supply current per amplifier. These amplifiers operate from a +2.7V to +5.25V single supply and feature rail-to-rail outputs.
